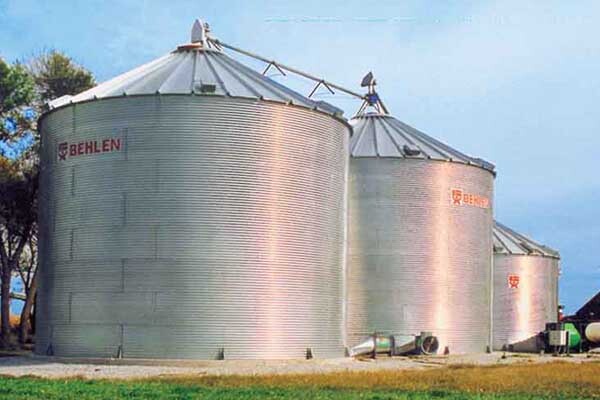

Capacities from 2,500 to over 55,000 bushels
Designed with commercial applications in mind
Large roof decks

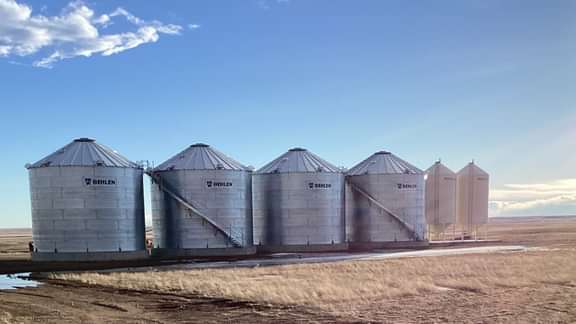

Unstiffened Bin Series Brochure

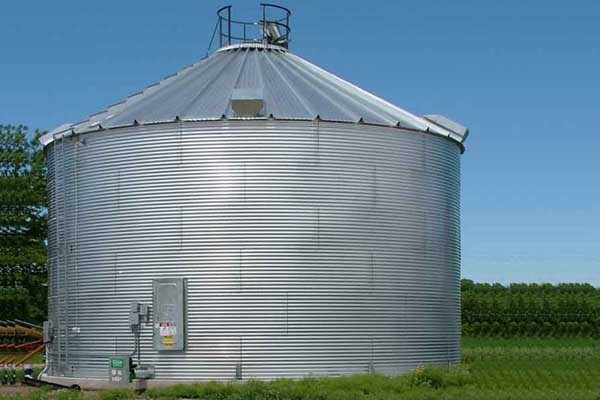

UNSTIFFENED BIN ROOF SYSTEM

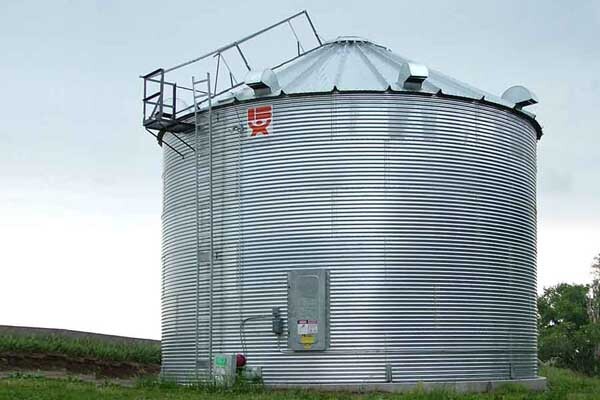

ONE OF THE LARGEST ROOF DECKS

The unstiffened series of bins has an ample 32" diameter opening suitable for high capacity filling equipment. The peak of the bin is designed to support increasingly larger filling equipment.

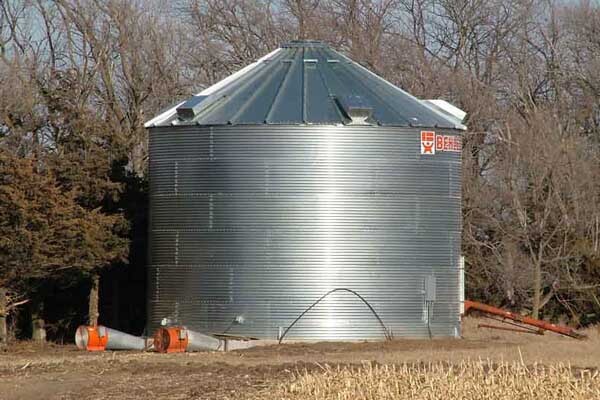

RIGIDIZED ROOF

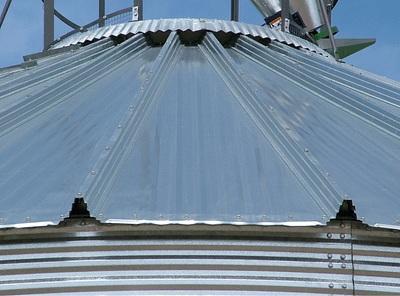

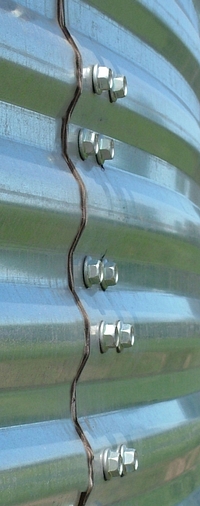

Behlen's roll formed roof panels are rigidized between the 3½" high ribs. The panels are held securely at the eave with a minimum of 8 bolts attaching the panels to a continuous angle iron and rib brackets. These features work to keep a roof over your crop, even in the strongest storm.

Specifications

Model(dia. x eave hi In meters)

Eave Height (ft/in)

Overall Height (ft/in)

Overall Height (meters)

Bushels* (maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

UNSTIFFENED BIN SERIES - Diameter 5 Meters (16' 5")

5x4

13' 3"

17' 11"

5.47

2,657

5x5

16' 6"

21' 3"

6.47

3,248

5x6

19' 10"

24' 6"

7.47

3,838

108

5x7

23' 1"

27' 10"

8.47

4,429

125

112

5x8

26' 4"

31' 1"

9.47

5,019

142

127

103

5x9

29' 8"

34' 4"

10.47

5,610

158

142

115

Model(dia. x eave hi In meters)

Eave Height (ft/in)

Overall Height (ft/in)

Overall Height (meters)

Bushels* (maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

UNSTIFFENED BIN SERIES - Diameter 6 Meters (19' 8")

6x4

13' 3"

18' 11"

5.78

3,902

110

6x5

16' 6"

22' 3"

6.78

4,752

134

121

6x6

19' 10"

25' 6"

7.78

5,602

158

142

115

6x7

23' 1"

28' 10"

8.78

6,453

182

164

132

6x8

26' 4"

32' 1"

9.78

7,303

206

185

149

6x9

29' 8"

35' 4"

10.78

8,153

230

207

167

Model(dia. x eave hi In meters)

Eave Height (ft/in)

Overall Height (ft/in)

Overall Height (meters)

Bushels* (maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

UNSTIFFENED BIN SERIES - Diameter 7 Meters (22' 11")

7x4

13' 3"

19' 10"

6.04

5,413

153

137

111

7x5

16' 6"

23' 1"

7.04

6,571

185

167

134

7x6

19' 10"

26' 5"

8.04

7,728

218

196

158

7x7

23' 1"

29' 8"

9.04

8,886

251

226

182

7x8

26' 4"

32' 11"

10.04

10,043

283

255

205

7x9

29' 8"

36' 3"

11.04

11,200

316

284

229

Model(dia. x eave hi In meters)

Eave Height (ft/in)

Overall Height (ft/in)

Overall Height (meters)

Bushels* (maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

UNSTIFFENED BIN SERIES - Diameter 8 Meters (26' 3")

8x4

13' 3"

20' 9"

6.33

7,205

203

183

147

8x5

16' 6"

24' 1"

7.33

8,716

246

221

178

8x6

19' 10"

27' 4"

8.33

10,228

288

260

209

8x7

23' 1"

30' 7"

9.33

11,740

331

298

240

8x8

26' 4"

33' 11"

10.33

13,251

374

336

271

8x9

29' 8"

37' 2"

11.33

14,763

416

375

302

Model(dia. x eave hi In meters)

Eave Height (ft/in)

Overall Height (ft/in)

Overall Height (meters)

Bushels* (maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

UNSTIFFENED BIN SERIES - Diameter 9 Meters (29' 6")

9x4

13' 3"

21' 9"

6.64

9,288

262

236

190

9x5

16' 6"

25' 1"

7.64

11,201

316

284

229

9x6

19' 10"

28' 4"

8.64

13,114

370

333

268

9x7

23' 1"

31' 7"

9.64

15,028

424

381

307

9x8

26' 4"

34' 11"

10.64

16,941

478

430

346

9x9

29' 8"

38' 2"

11.64

18,854

532

479

385

Model(dia. x eave hi In meters)

Eave Height (ft/in)

Overall Height (ft/in)

Overall Height (meters)

Bushels* (maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

UNSTIFFENED BIN SERIES - Diameter 10 Meters (32' 10")

10x4

13' 3"

22' 8"

6.91

11,676

329

296

239

10x5

16' 6"

25' 11"

7.91

14,038

396

356

287

10x6

19' 10"

29' 3"

8.91

16,400

463

416

335

10x7

23' 1"

32' 6"

9.91

18,762

529

476

384

10x8

26' 4"

35' 9"

10.91

21,124

596

536

432

10x9

29' 8"

39' 1"

11.91

23,486

662

596

480

Model(dia. x eave hi In meters)

Eave Height (ft/in)

Overall Height (ft/in)

Overall Height (meters)

Bushels* (maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

UNSTIFFENED BIN SERIES - Diameter 11 Meters (36' 1")

11x4

13' 3"

23' 2"

7.06

14,381

406

365

294

11x5

16' 6"

26' 5"

8.06

17,239

486

438

353

11x6

19' 10"

29' 9"

9.06

20,097

567

510

411

11x7

23' 1"

33' 0"

10.06

22,955

647

583

469

11x8

26' 4"

36' 3"

11.06

25,813

728

655

528

11x9

29' 8"

39' 7"

12.06

28,671

809

728

586

Model(dia. x eave hi In meters)

Eave Height (ft/in)

Overall Height (ft/in)

Overall Height (meters)

Bushels* (maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

UNSTIFFENED BIN SERIES - Diameter 13 Meters (42' 8")

13x4

13' 3"

25' 2"

7.67

20,793

586

528

425

13x5

16' 6"

28' 5"

8.67

24,785

699

629

507

13x6

19' 10"

31' 9"

9.67

28,777

811

730

588

13x7

23' 1"

35' 0"

10.67

32,769

924

832

670

13x8

26' 4"

38' 3"

11.67

36,760

1,037

933

752

13x9

29' 8"

41' 7"

12.67

40,752

1,149

1,034

833

Model(dia. x eave hi In meters)

Eave Height (ft/in)

Overall Height (ft/in)

Overall Height (meters)

Bushels* (maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

UNSTIFFENED BIN SERIES - Diameter 15 Meters (49' 3")

15x4

13' 3"

26' 2"

7.98

28,626

807

726

585

15x5

16' 6"

29' 5"

8.98

33,940

957

861

640

15x6

19' 10"

32' 9"

9.98

39,255

1,107

996

803

15x7

23' 1"

36' 0"

10.98

44,569

1,257

1,131

911

15x8

26' 4"

39' 3"

11.98

49,884

1,407

1,266

1,020

15x9

29' 8"

42' 6"

12.98

55,190

1,556

1,401

1,128

TYPICAL GRAIN DENSITIES:

Wheat approximately 800 kg/m3 (50 lb/ft3)
Corn approximately 720 kg/m3 (45 lb/ft3)
Rice approximately 580 kg/m3 (36 lb/ft3)

* Capacities based on bin filled to eave with grain peaked in roof area at 28 degree slope. Bushels based on 1.25 cubic ft./bu. Metric ton calculations assume wheat at 800 kb/cubic meter; corn at 720 kg/cubic meter and rice at 580 kg/cubic meters. All maximum capacities include a 6% compaction allowances as determined by the American Society of Agricultural Engineers (ASAE) standard S413.
