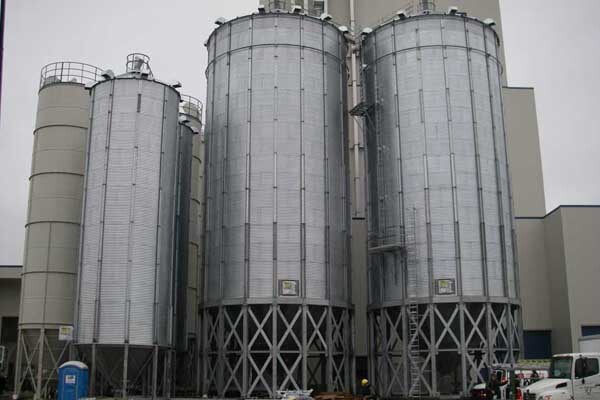

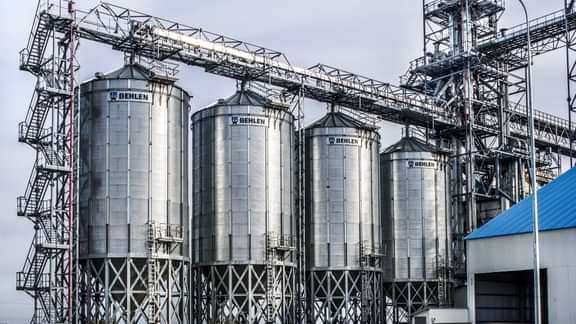

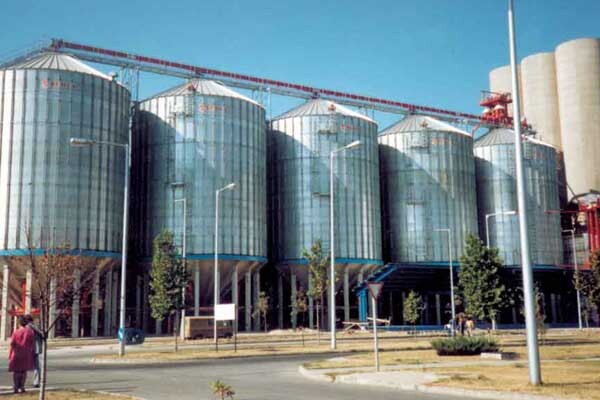

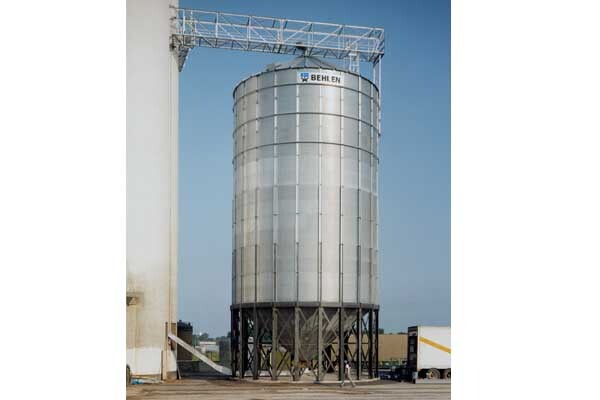

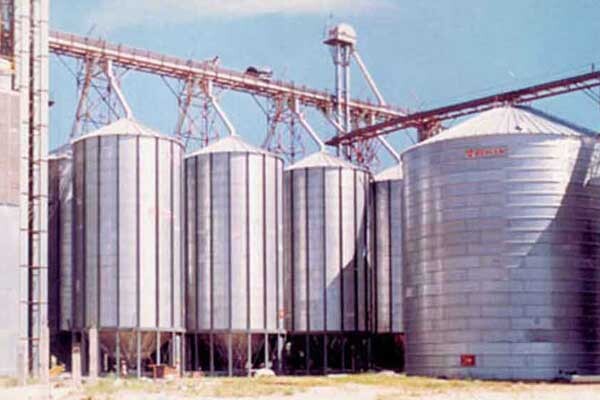

Designed with state-of-the-art computer technology
Built to last in demanding, high throughput operations
Many of the same features found in our Big Bin Series
UNMATCHED ROOF SYSTEM
Behlen roofs are manufacturer certified to withstand 40 lbs./sq. ft. ground snow load. Gentle 30° roof pitch allows for optimum filling.
Roof panels are 3-1/2" high with four stair steps on both sides. This provides outstanding strength against snow, wind, and other loads. Roof panels are roll-formed for a precision fit.
ROOF DESIGNED WITH UNIQUE FEATURES
Continuous angle connectors at the eave are superior to clip systems and provide the option of an open or closed eave.
Specifications
| Model(dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Eave Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

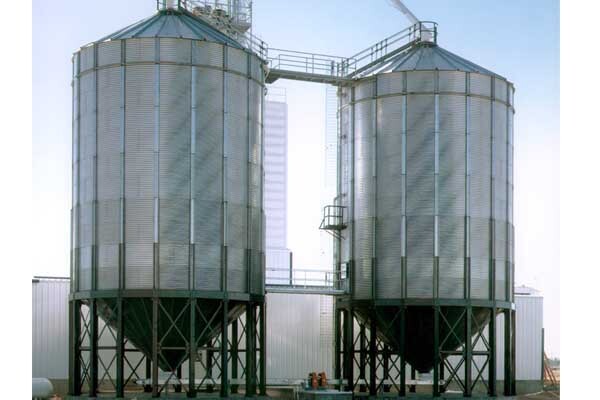

| COMMERCIAL HOPPER TANK - Diameter 5 Meters (16' 5") 45 degree hopper angle | |||||||||||||||
| 5x4 | 23' 4" | 27' 11" | 7.12 | 8.52 | 3,120 | 88 | 79 | 63 | 103 | ||||||
| 5x5 | 26' 7" | 31' 3" | 8.12 | 9.52 | 3,708 | 105 | 94 | 75 | 123 | ||||||
| 5x6 | 29' 11" | 34' 6" | 9.12 | 10.52 | 4,296 | 122 | 109 | 88 | 143 | ||||||
| 5x7 | 33' 2" | 37' 10" | 10.12 | 11.52 | 4,884 | 138 | 124 | 100 | 163 | ||||||
| 5x8 | 36' 5" | 41' 1" | 11.12 | 12.52 | 5,472 | 155 | 139 | 112 | 182 | ||||||
| 5x9 | 39' 9" | 44' 4" | 12.12 | 13.52 | 6,060 | 172 | 154 | 124 | 145 | ||||||
| 5x10 | 43' 0" | 47' 8" | 13.12 | 14.52 | 6,648 | 188 | 169 | 136 | 221 | ||||||
| 5x11 | 46' 3" | 50' 11" | 14.12 | 15.52 | 7,236 | 205 | 184 | 148 | 241 | ||||||
| 5x12 | 49' 7" | 54' 3" | 15.12 | 16.52 | 7,824 | 222 | 199 | 160 | 261 | ||||||
| 5x13 | 52' 10" | 57' 6" | 16.12 | 17.52 | 8,841 | 239 | 214 | 172 | 280 | ||||||
| 5x14 | 56' 1" | 60' 9" | 17.12 | 18.52 | 9,000 | 255 | 229 | 184 | 300 | ||||||
| 5x15 | 59' 5" | 64' 0" | 18.12 | 19.52 | 9,588 | 272 | 244 | 196 | 320 | ||||||
| 5x16 | 62' 8" | 67' 4" | 19.12 | 20.52 | 10,176 | 288 | 259 | 208 | 339 | ||||||
| 5x17 | 66' 0" | 70' 7" | 20.12 | 21.52 | 10,764 | 305 | 274 | 220 | 359 | ||||||
| 5 meter 45 degree hopper clearance 34.5" (838 mm) from bottom of hopper (without gate) to base of leg. Based on standard 16" (406 mm) opening. Other opening sizes available on request. | |||||||||||||||
| Model(dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Eave Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL HOPPER TANK - Diameter 5 Meters (16' 5") 60 degree hopper angle | |||||||||||||||
| 5x4 | 28' 3" | 32' 10" | 8.61 | 10.01 | 3,476 | 98 | 88 | 71 | 115 | ||||||
| 5x5 | 31' 6" | 36' 2" | 9.61 | 11.01 | 4,066 | 114 | 103 | 78 | 135 | ||||||
| 5x6 | 34' 10" | 39' 5" | 10.61 | 12.01 | 4,657 | 131 | 118 | 90 | 154 | ||||||
| 5x7 | 38' 1" | 42' 8" | 11.61 | 13.01 | 5,247 | 148 | 133 | 107 | 174 | ||||||
| 5x8 | 41' 5" | 46' 0" | 12.61 | 14.01 | 5,838 | 164 | 148 | 119 | 194 | ||||||
| 5x9 | 44' 8" | 49' 3" | 13.61 | 15.01 | 6,428 | 181 | 163 | 131 | 213 | ||||||
| 5x10 | 47' 11" | 52' 6" | 14.61 | 16.01 | 7,019 | 197 | 178 | 143 | 233 | ||||||
| 5x11 | 51' 3" | 55' 10" | 15.61 | 17.01 | 1,609 | 214 | 193 | 155 | 253 | ||||||
| 5x12 | 54' 6" | 59' 1" | 16.61 | 18.01 | 8,200 | 231 | 208 | 167 | 272 | ||||||
| 5x13 | 57' 9" | 62' 4" | 17.61 | 19.01 | 8,790 | 247 | 223 | 179 | 292 | ||||||
| 5x14 | 61' 1" | 65' 8" | 18.61 | 20.01 | 9,381 | 264 | 238 | 191 | 312 | ||||||
| 5x15 | 64' 4" | 68' 11" | 19.61 | 21.01 | 9,971 | 281 | 253 | 203 | 331 | ||||||
| 5x16 | 67' 7" | 72' 3" | 20.61 | 22.01 | 10,562 | 297 | 268 | 215 | 351 | ||||||
| 5x17 | 70' 10" | 75' 6" | 21.61 | 23.01 | 11,152 | 314 | 283 | 228 | 370 | ||||||
| 5 meter 60 degree hopper clearance 33" (838 mm) from bottom of hopper (without gate) to base of leg. Based on standard 16" (406 mm) opening. Other opening sizes available on request. | |||||||||||||||
| Model(dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Eave Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL HOPPER TANK - Diameter 7 Meters (22' 11") 45 degree hopper angle | |||||||||||||||
| 7x4 | 26' 8" | 33' 2" | 8.12 | 10.09 | 6,704 | 190 | 171 | 137 | 223 | ||||||
| 7x5 | 29' 11" | 36' 5" | 9.12 | 11.09 | 7,856 | 223 | 201 | 160 | 261 | ||||||
| 7x6 | 33' 3" | 39' 9" | 10.12 | 12.09 | 9,009 | 255 | 230 | 184 | 300 | ||||||
| 7x7 | 36' 9" | 43' 0" | 11.12 | 13.09 | 10,161 | 288 | 260 | 208 | 338 | ||||||
| 7x8 | 39' 9" | 46' 3" | 12.12 | 14.09 | 11,314 | 321 | 289 | 231 | 377 | ||||||
| 7x9 | 43' 2" | 49' 7" | 13.12 | 15.09 | 12,466 | 354 | 318 | 255 | 415 | ||||||
| 7x10 | 46' 4" | 52' 10" | 14.12 | 16.09 | 13,618 | 386 | 348 | 279 | 454 | ||||||
| 7x11 | 49' 7" | 56' 1" | 15.12 | 17.09 | 14,770 | 419 | 377 | 302 | 492 | ||||||
| 7x12 | 52' 11" | 59' 5" | 16.12 | 18.09 | 15,922 | 452 | 406 | 326 | 531 | ||||||
| 7x13 | 56' 2" | 62' 8" | 17.12 | 19.09 | 17,074 | 484 | 436 | 350 | 569 | ||||||
| 7x14 | 59' 5" | 65' 11" | 18.12 | 20.09 | 18,226 | 517 | 465 | 373 | 608 | ||||||
| 7x15 | 62' 9" | 69' 2" | 19.12 | 21.09 | 19,378 | 550 | 494 | 397 | 646 | ||||||
| 7x16 | 66' 0" | 72' 6" | 20.12 | 22.09 | 20,530 | 582 | 524 | 420 | 685 | ||||||
| 7x17 | 69' 3" | 75' 9" | 21.12 | 23.09 | 21,682 | 614 | 553 | 444 | 723 | ||||||
| 7 meter 45 degree hopper clearance 34.5" (876 mm) from bottom of hopper (without gate) to base of leg. Based on standard 16" (406 mm) opening. Other opening sizes available on request. | |||||||||||||||
| Model(dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Eave Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL HOPPER TANK - Diameter 7 Meters (22' 11") 50 degree hopper angle | |||||||||||||||
| 7x4 | 28' 8" | 35' 2" | 8.74 | 10.71 | 6,957 | 196 | 176 | 142 | 231 | ||||||
| 7x5 | 32' 0" | 38' 5" | 9.74 | 11.71 | 8,114 | 228 | 206 | 165 | 270 | ||||||
| 7x6 | 35' 3" | 41' 8" | 10.74 | 12.71 | 9,271 | 261 | 235 | 189 | 308 | ||||||
| 7x7 | 38' 6" | 45' 0" | 11.74 | 13.71 | 10,429 | 294 | 264 | 213 | 346 | ||||||
| 7x8 | 41' 9" | 48' 3" | 12.74 | 14.71 | 11,580 | 326 | 294 | 236 | 385 | ||||||
| 7x9 | 45' 1" | 51' 6" | 13.74 | 15.71 | 12,744 | 359 | 323 | 260 | 423 | ||||||
| 7x10 | 48' 4" | 54' 10" | 14.74 | 16.71 | 13,901 | 392 | 352 | 284 | 462 | ||||||
| 7x11 | 51' 8" | 58' 1" | 15.74 | 17.71 | 15,058 | 424 | 382 | 307 | 500 | ||||||
| 7x12 | 54' 11" | 61' 5" | 16.74 | 18.71 | 16,216 | 457 | 411 | 331 | 539 | ||||||
| 7x13 | 58' 2" | 64' 8" | 17.74 | 19.71 | 17,373 | 490 | 440 | 355 | 577 | ||||||
| 7x14 | 61' 6" | 68' 0" | 18.74 | 20.71 | 18,530 | 522 | 470 | 378 | 616 | ||||||
| 7x15 | 64' 9" | 71' 3" | 19.74 | 21.71 | 19,688 | 551 | 499 | 402 | 654 | ||||||
| 7x16 | 68' 1" | 74' 6" | 20.74 | 22.71 | 20,845 | 587 | 529 | 426 | 693 | ||||||
| 7x17 | 71' 4" | 77' 9" | 21.74 | 23.71 | 22,003 | 620 | 558 | 449 | 731 | ||||||
| 7 meter 50 degree hopper clearance 34.5" (876 mm) from bottom of hopper (without gate) to base of leg. Based on standard 16" (406 mm) opening. Other opening sizes available on request. | |||||||||||||||
| Model(dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Eave Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL HOPPER TANK - Diameter 9 Meters (29' 6") 40 degree hopper angle | |||||||||||||||
| 9x4 | 28' 6" | 36' 10" | 8.68 | 11.23 | 11,546 | 327 | 295 | 237 | 385 | ||||||
| 9x5 | 31' 10" | 40' 2" | 9.68 | 12.23 | 13,452 | 381 | 344 | 276 | 449 | ||||||
| 9x6 | 35' 1" | 43' 5" | 10.68 | 13.23 | 15,357 | 435 | 393 | 315 | 513 | ||||||
| 9x7 | 38' 4" | 46' 9" | 11.68 | 14.23 | 17,262 | 490 | 441 | 354 | 576 | ||||||
| 9x8 | 41' 8" | 50' 0" | 12.68 | 15.23 | 19,167 | 544 | 490 | 393 | 640 | ||||||
| 9x9 | 45' 0" | 53' 3" | 13.68 | 16.23 | 21,072 | 598 | 538 | 432 | 703 | ||||||
| 9x10 | 48' 3" | 56' 7" | 14.68 | 17.23 | 22,977 | 652 | 587 | 471 | 767 | ||||||
| 9x11 | 51' 6" | 59' 10" | 15.68 | 18.23 | 24,882 | 706 | 635 | 510 | 831 | ||||||
| 9x12 | 54' 9" | 63' 1" | 16.68 | 19.23 | 26,787 | 760 | 684 | 550 | 894 | ||||||
| 9x13 | 58' 1" | 66' 5" | 17.68 | 20.23 | 28,693 | 814 | 732 | 589 | 958 | ||||||
| 9x14 | 61' 4" | 69' 8" | 18.68 | 21.23 | 30,598 | 868 | 781 | 628 | 1022 | ||||||
| 9x15 | 64' 8" | 72' 11" | 19.68 | 22.23 | 32,503 | 922 | 830 | 667 | 1085 | ||||||
| 9x16 | 67' 10" | 76' 2" | 20.68 | 23.23 | 34,408 | 976 | 878 | 706 | 1149 | ||||||
| 9x17 | 71' 2" | 79' 6" | 21.68 | 24.23 | 36,313 | 1,030 | 926 | 745 | 1,212 | ||||||
| 9 meter 40 degree hopper clearance 44" (1117 mm) from bottom of hopper (without gate) to base of leg. Based on standard 16" (406 mm) opening. Other opening sizes available on request. | |||||||||||||||
| Model(dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Eave Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL HOPPER TANK - Diameter 9 Meters (29' 6") 45 degree hopper angle | |||||||||||||||
| 9x4 | 30' 9" | 39' 2" | 9.38 | 11.93 | 12,049 | 339 | 305 | 246 | 400 | ||||||
| 9x5 | 34' 0" | 42' 5" | 10.38 | 12.93 | 13,962 | 393 | 354 | 285 | 464 | ||||||
| 9x6 | 37' 4" | 45' 9" | 11.38 | 13.93 | 15,875 | 447 | 403 | 324 | 528 | ||||||
| 9x7 | 40' 7" | 49' 0" | 12.38 | 14.93 | 17,788 | 501 | 451 | 363 | 592 | ||||||
| 9x8 | 43' 10" | 52' 4" | 13.38 | 15.93 | 19,702 | 555 | 500 | 403 | 655 | ||||||
| 9x9 | 47' 2" | 55' 7" | 14.38 | 16.93 | 21,615 | 609 | 548 | 442 | 718 | ||||||
| 9x10 | 50' 5" | 58' 10" | 15.38 | 17.93 | 23,528 | 663 | 597 | 481 | 782 | ||||||
| 9x11 | 53' 8" | 62' 2" | 16.38 | 18.93 | 25,441 | 717 | 645 | 250 | 846 | ||||||
| 9x12 | 56' 11" | 65' 5" | 17.38 | 19.93 | 27,355 | 771 | 694 | 559 | 909 | ||||||
| 9x13 | 60' 3" | 68' 8" | 18.38 | 20.93 | 29,268 | 825 | 742 | 598 | 973 | ||||||
| 9x14 | 63' 7" | 71' 11" | 19.38 | 21.93 | 31,181 | 879 | 791 | 637 | 1,036 | ||||||
| 9x15 | 66' 10" | 75' 3" | 20.38 | 22.93 | 33,094 | 993 | 839 | 676 | 1,100 | ||||||
| 9x16 | 70' 1" | 78' 6" | 21.38 | 23.93 | 35,007 | 987 | 888 | 715 | 1,164 | ||||||
| 9x17 | 73' 5" | 81' 10" | 22.38 | 24.93 | 36,921 | 1,041 | 937 | 754 | 1,227 | ||||||
| 9 meter 45 degree hopper clearance 45" (1117 mm) from bottom of hopper (without gate) to base of leg. Based on standard 16" (406 mm) opening. Other opening sizes available on request. | |||||||||||||||
| Model(dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Eave Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL HOPPER TANK - Diameter 9 Meters (29' 6") 50 degree hopper angle | |||||||||||||||
| 9x4 | 33' 4" | 41' 9" | 10.17 | 12.72 | 12,599 | 355 | 319 | 257 | 419 | ||||||
| 9x5 | 36' 8" | 45' 0" | 11.17 | 13.72 | 14,512 | 409 | 368 | 296 | 482 | ||||||
| 9x6 | 39' 11" | 48' 3" | 12.17 | 14.72 | 16,426 | 463 | 416 | 335 | 546 | ||||||
| 9x7 | 43' 3" | 51' 7" | 13.17 | 15.72 | 18,339 | 517 | 465 | 374 | 610 | ||||||
| 9x8 | 46' 6" | 54' 10" | 14.17 | 16.72 | 20,252 | 571 | 514 | 414 | 673 | ||||||
| 9x9 | 49' 9" | 58' 2" | 15.17 | 17.72 | 22,165 | 625 | 562 | 453 | 737 | ||||||
| 9x10 | 53' 1" | 61' 5" | 16.17 | 18.72 | 24,078 | 679 | 611 | 492 | 800 | ||||||
| 9x11 | 56' 4" | 64' 8" | 17.17 | 19.72 | 25,992 | 733 | 622 | 531 | 864 | ||||||
| 9x12 | 59' 7" | 68' 0" | 18.17 | 20.72 | 27,905 | 787 | 708 | 570 | 928 | ||||||
| 9x13 | 62' 11 | 71' 3" | 19.17 | 21.72 | 29,818 | 840 | 756 | 609 | 991 | ||||||
| 9x14 | 66' 2" | 74' 6" | 20.17 | 22.72 | 31,731 | 894 | 805 | 648 | 1,055 | ||||||
| 9x15 | 69' 5" | 77' 10" | 21.17 | 23.72 | 33,645 | 948 | 853 | 687 | 1,118 | ||||||
| 9x16 | 72' 9" | 81' 1" | 22.17 | 24.72 | 35,558 | 1,002 | 902 | 726 | 1,182 | ||||||
| 9x17 | 76' 0" | 84' 5" | 23.17 | 25.72 | 37,471 | 1,056 | 950 | 766 | 1,246 | ||||||
| 9 meter 50 degree hopper clearance 46" (1117 mm) from bottom of hopper (without gate) to base of leg. Based on standard 16" (406 mm) opening. Other opening sizes available on request. | |||||||||||||||
| Model(dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Eave Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL HOPPER TANK - Diameter 11 Meters (36' 1") 40 degree hopper angle | |||||||||||||||
| 11x4 | 30' 9" | 40' 7" | 9.39 | 12.38 | 18,164 | 524 | 472 | 380 | 619 | ||||||
| 11x5 | 34' 1" | 43' 11" | 10.39 | 13.38 | 21,472 | 605 | 545 | 439 | 714 | ||||||
| 11x6 | 37' 4" | 47' 2" | 11.39 | 14.38 | 24,330 | 686 | 617 | 497 | 809 | ||||||
| 11x7 | 40' 8" | 50' 6" | 12.39 | 15.38 | 27,188 | 766 | 690 | 555 | 904 | ||||||
| 11x8 | 43' 11" | 53' 9" | 13.39 | 16.38 | 30,046 | 847 | 762 | 614 | 999 | ||||||
| 11x9 | 47' 2" | 57' 0" | 14.39 | 17.38 | 32,904 | 964 | 835 | 672 | 1,094 | ||||||
| 11x10 | 50' 6" | 60' 4" | 15.39 | 18.38 | 35,762 | 1,008 | 907 | 731 | 1,189 | ||||||
| 11x11 | 53' 9" | 63' 7" | 16.39 | 19.38 | 38,620 | 1,088 | 980 | 789 | 1,284 | ||||||
| 11x12 | 57' 0" | 66' 10" | 17.39 | 20.38 | 41,478 | 1,169 | 1,052 | 848 | 1,379 | ||||||
| 11x13 | 60' 4" | 70' 2" | 18.39 | 21.38 | 44,336 | 1,250 | 1,125 | 906 | 1,474 | ||||||
| 11x14 | 63' 7" | 73' 5" | 19.39 | 22.38 | 47,194 | 1,330 | 1,197 | 964 | 1,569 | ||||||
| 11x15 | 66' 11" | 76' 8" | 20.39 | 23.38 | 50,052 | 1,411 | 1,270 | 1,023 | 1,664 | ||||||
| 11x16 | 70' 2" | 80' 0" | 21.39 | 24.38 | 52,910 | 1,492 | 1,342 | 1,081 | 1,759 | ||||||
| 11x17 | 73' 5" | 83' 3" | 22.39 | 25.38 | 55,768 | 1,572 | 1,415 | 1,140 | 1,854 | ||||||
| 11 meter 40 degree hopper clearance 42" (1066 mm) from bottom of hopper (without gate) to base of leg. Based on standard 16" (406 mm) opening. Other opening sizes available on request. | |||||||||||||||
| Model(dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Eave Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL HOPPER TANK - Diameter 11 Meters (36' 1") 45 degree hopper angle | |||||||||||||||
| 11x4 | 33' 10" | 43' 7" | 10.30 | 13.30 | 19,457 | 548 | 493 | 397 | 647 | ||||||
| 11x5 | 37' 1" | 46' 11" | 11.30 | 14.30 | 22,315 | 629 | 566 | 456 | 742 | ||||||
| 11x6 | 40' 4" | 50' 2" | 12.30 | 15.30 | 25,173 | 709 | 639 | 514 | 837 | ||||||
| 11x7 | 43' 8" | 53' 6" | 13.30 | 16.30 | 28,031 | 790 | 711 | 573 | 932 | ||||||
| 11x8 | 46' 11" | 56' 9" | 14.30 | 17.30 | 30,889 | 871 | 784 | 631 | 1,027 | ||||||
| 11x9 | 50' 2" | 60' 0" | 15.30 | 18.30 | 33,747 | 951 | 856 | 689 | 1,122 | ||||||
| 11x10 | 53' 6" | 63' 4" | 16.30 | 19.30 | 36,605 | 1,032 | 929 | 748 | 1,217 | ||||||
| 11x11 | 56' 9" | 66' 7" | 17.30 | 20.30 | 39,463 | 1,112 | 1,001 | 806 | 1,312 | ||||||
| 11x12 | 60' 0" | 69' 11" | 18.30 | 21.30 | 42,321 | 1,193 | 1,074 | 865 | 1,407 | ||||||
| 11x13 | 63' 4" | 73' 2" | 19.30 | 22.30 | 45,180 | 1,274 | 1,146 | 923 | 1,502 | ||||||
| 11x14 | 66' 7" | 76' 5" | 20.30 | 23.30 | 48,038 | 1,354 | 1,219 | 982 | 1,597 | ||||||
| 11x15 | 69' 11" | 79' 9" | 21.30 | 24.30 | 50,896 | 1,435 | 1,291 | 1,040 | 1,692 | ||||||
| 11x16 | 73' 2" | 83' 0" | 22.30 | 25.30 | 53,754 | 1,515 | 1,364 | 1,099 | 1,787 | ||||||
| 11x17 | 76' 5" | 86' 3" | 23.30 | 26.30 | 56,612 | 1,596 | 1,436 | 1,157 | 1,882 | ||||||
| 11 meter 45 degree hopper clearance 42" (1066 mm) from bottom of hopper (without gate) to base of leg. Based on standard 16" (406 mm) opening. Other opening sizes available on request. | |||||||||||||||
TYPICAL GRAIN DENSITIES:
- Wheat approximately 50 lbs/ft.3 (800kg/m3)
- Corn approximately 45 lbs/ft.3 (720kg/m3)
- Rice approximately 36 lbs/ft.3 (580kg/m3)
Behlen commercial hopper tanks are externally stiffened with two stiffener columns per sidewall sheet to the eave and have a one ring access door located in the second ring from the base of the tank.
Behlen hopper tanks are designed for the storage of grain and similar free-flowing materials weighting up to 50 lbs./ft3 (800kg/m3). All capacities are based on 28° angle of repose. Bushel and metric tonnage capacity includes 6% compaction.

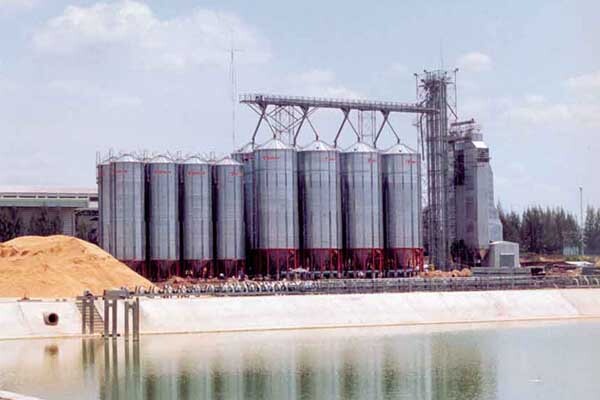

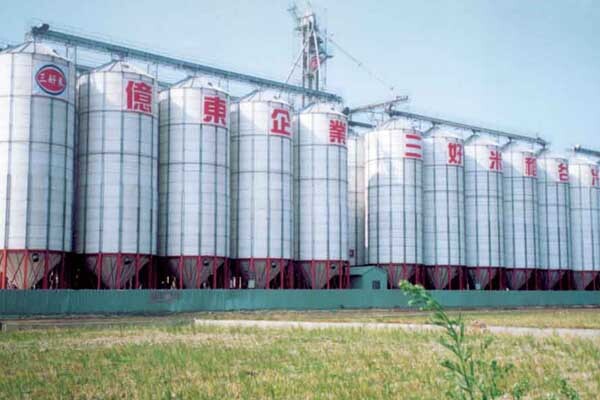

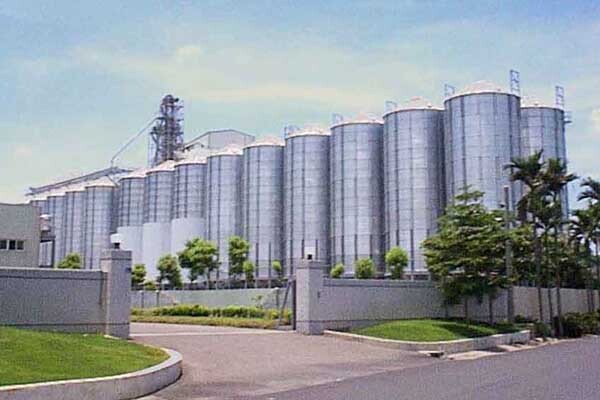

Commercial Hoppers Photos
