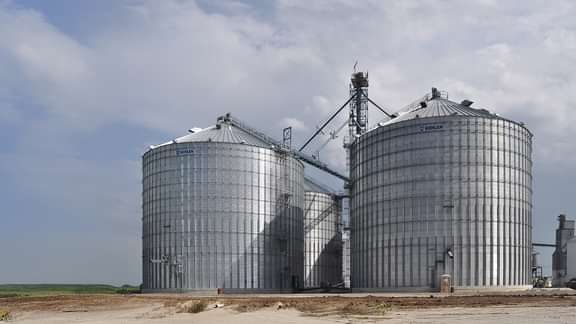

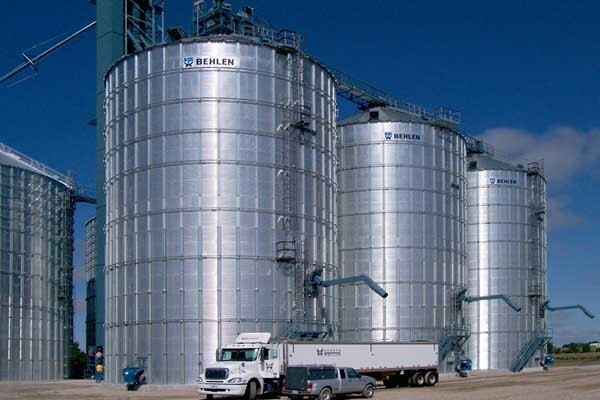

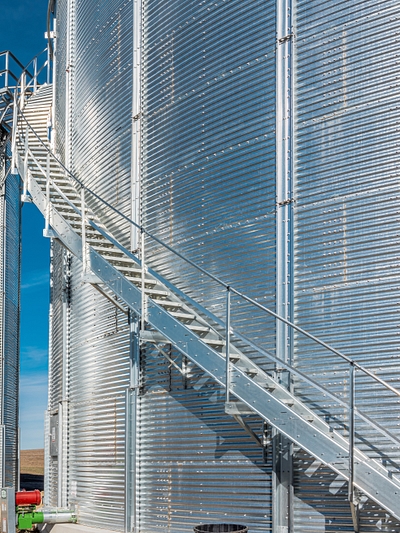

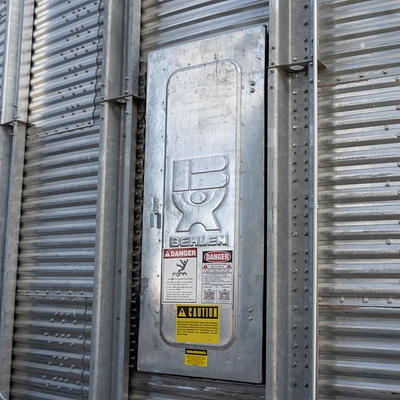

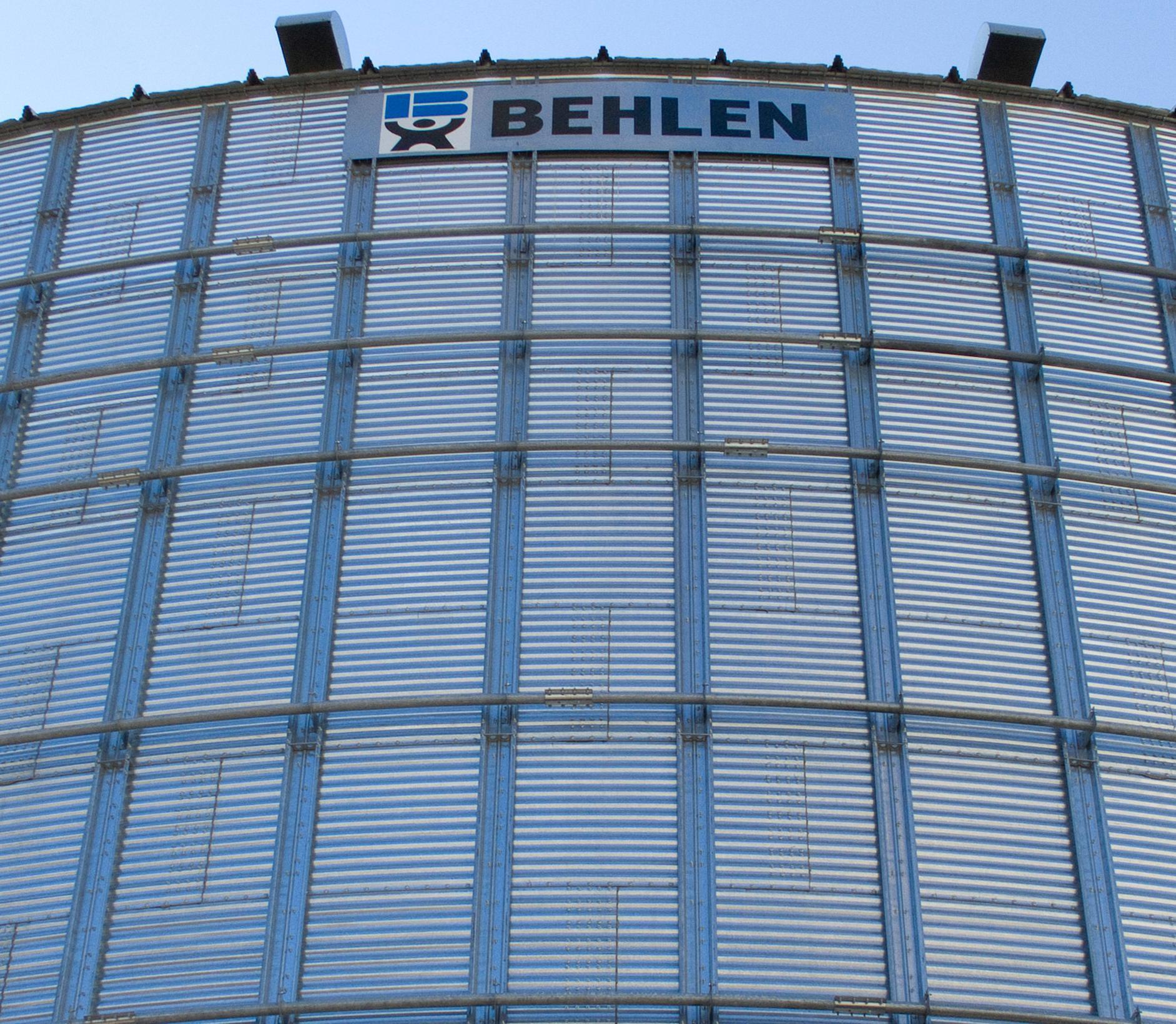

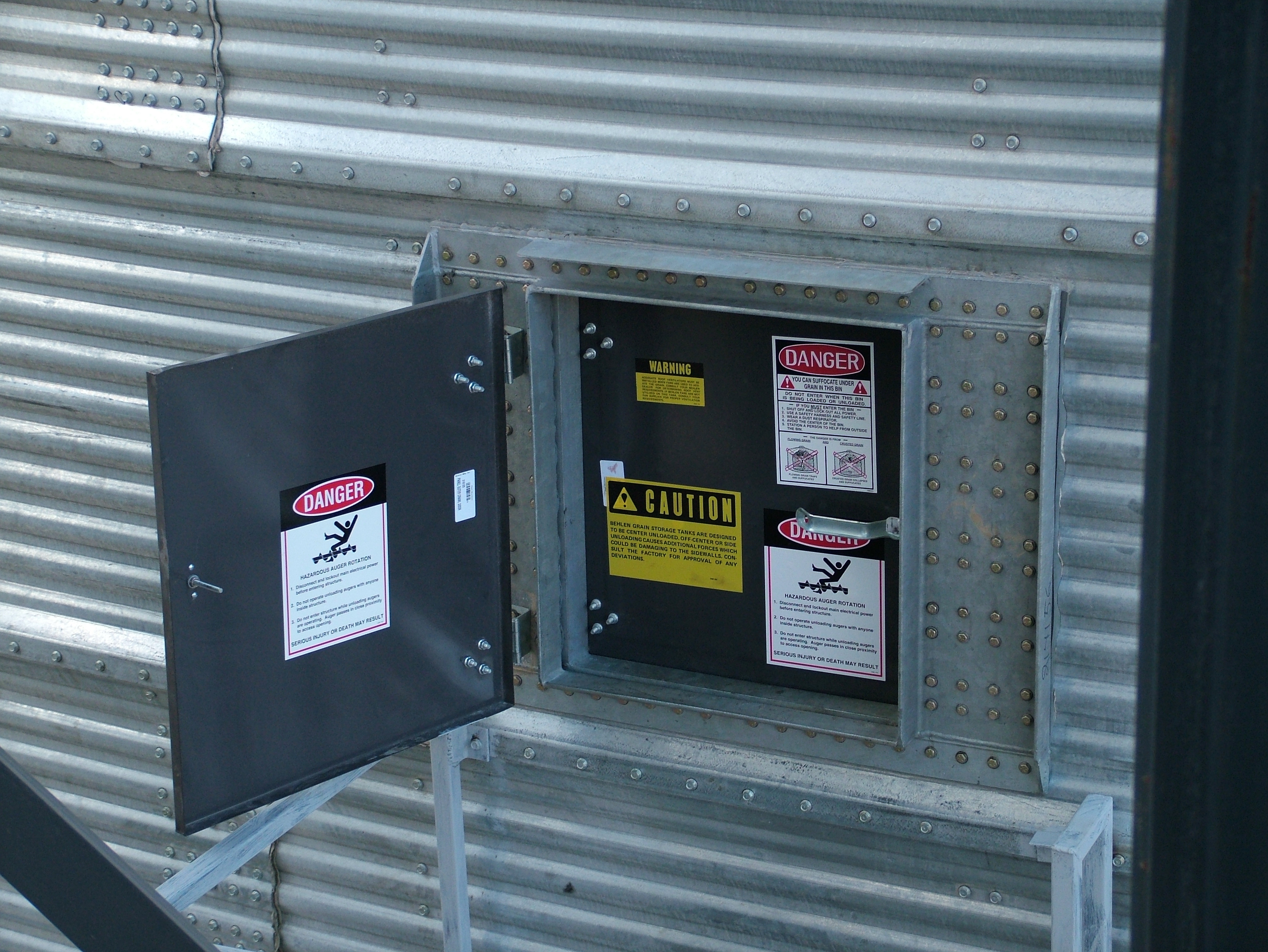

Capacities from 19,000 to over 135,000 bushels
A variety of peak loads available
Broad roof decks

Stiffened Bin Series Brochure

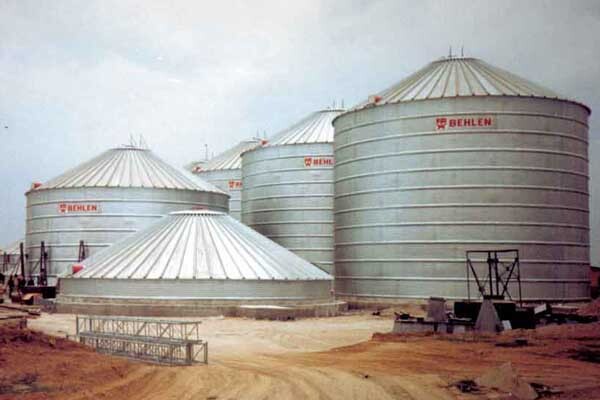

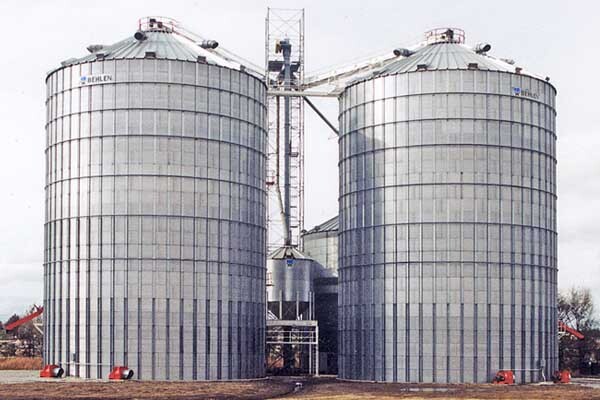

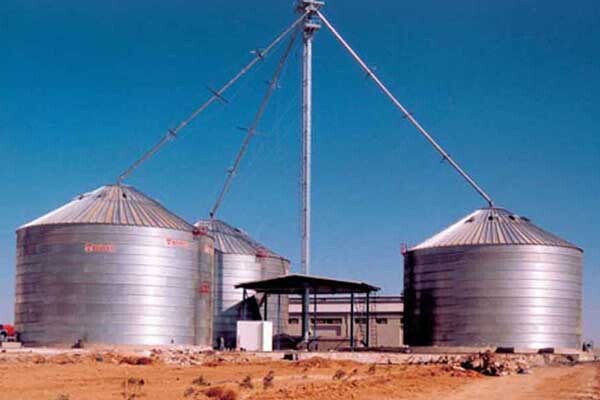

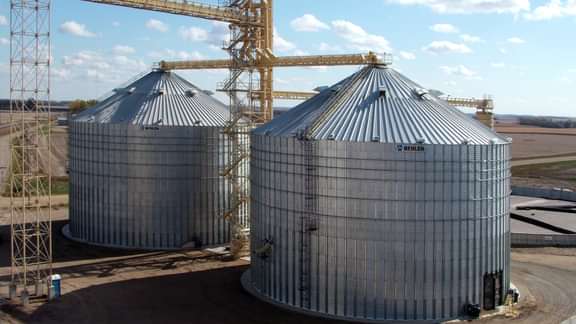

STIFFENED BIN ROOF SYSTEM

BROAD ROOF DECKS

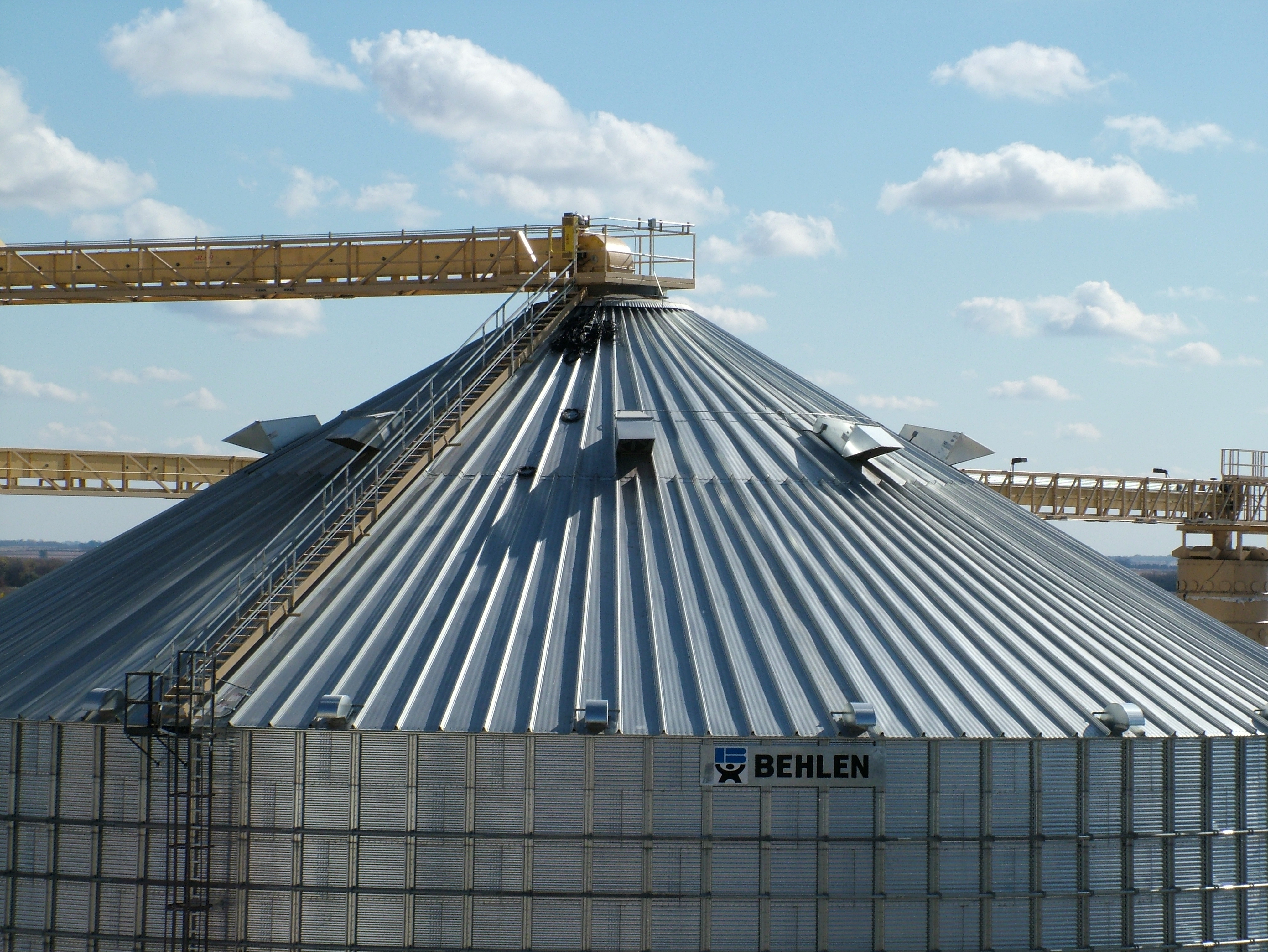

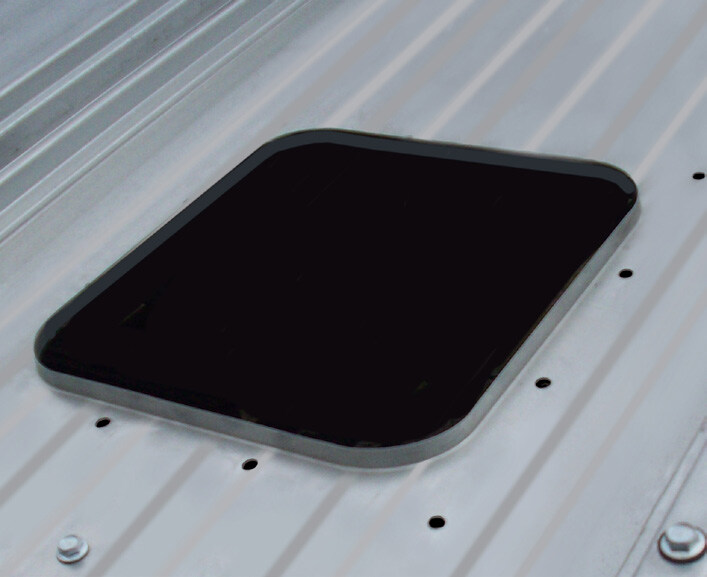

The stiffened series of bins has broad roof decks with large diameter openings and a variety of peak loads available to meet customer needs.

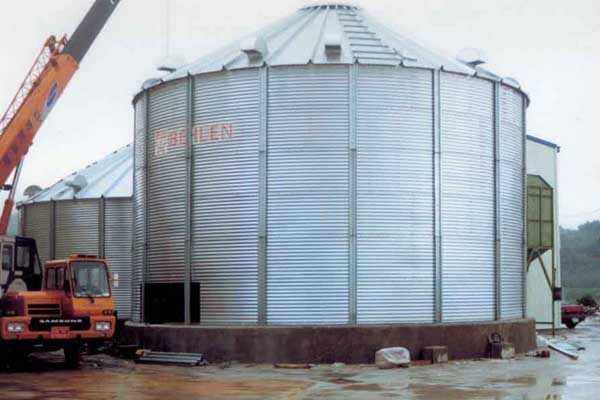

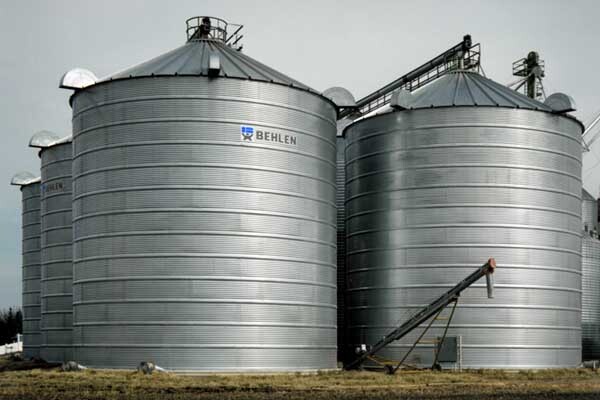

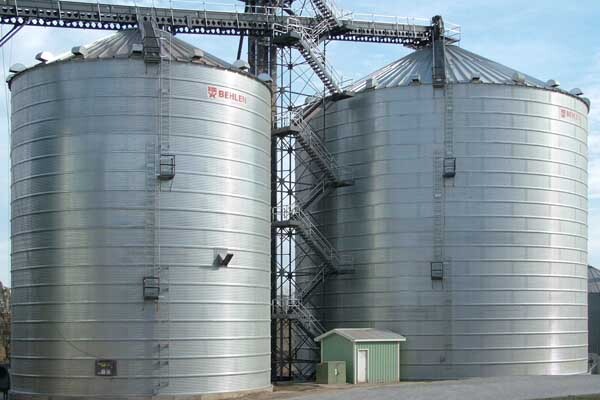

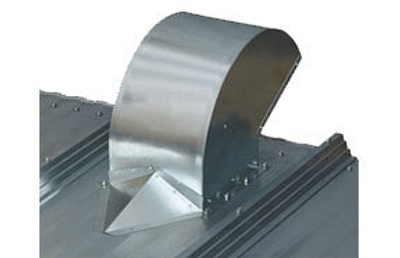

ROOF DESIGNED WITH UNIQUE FEATURES

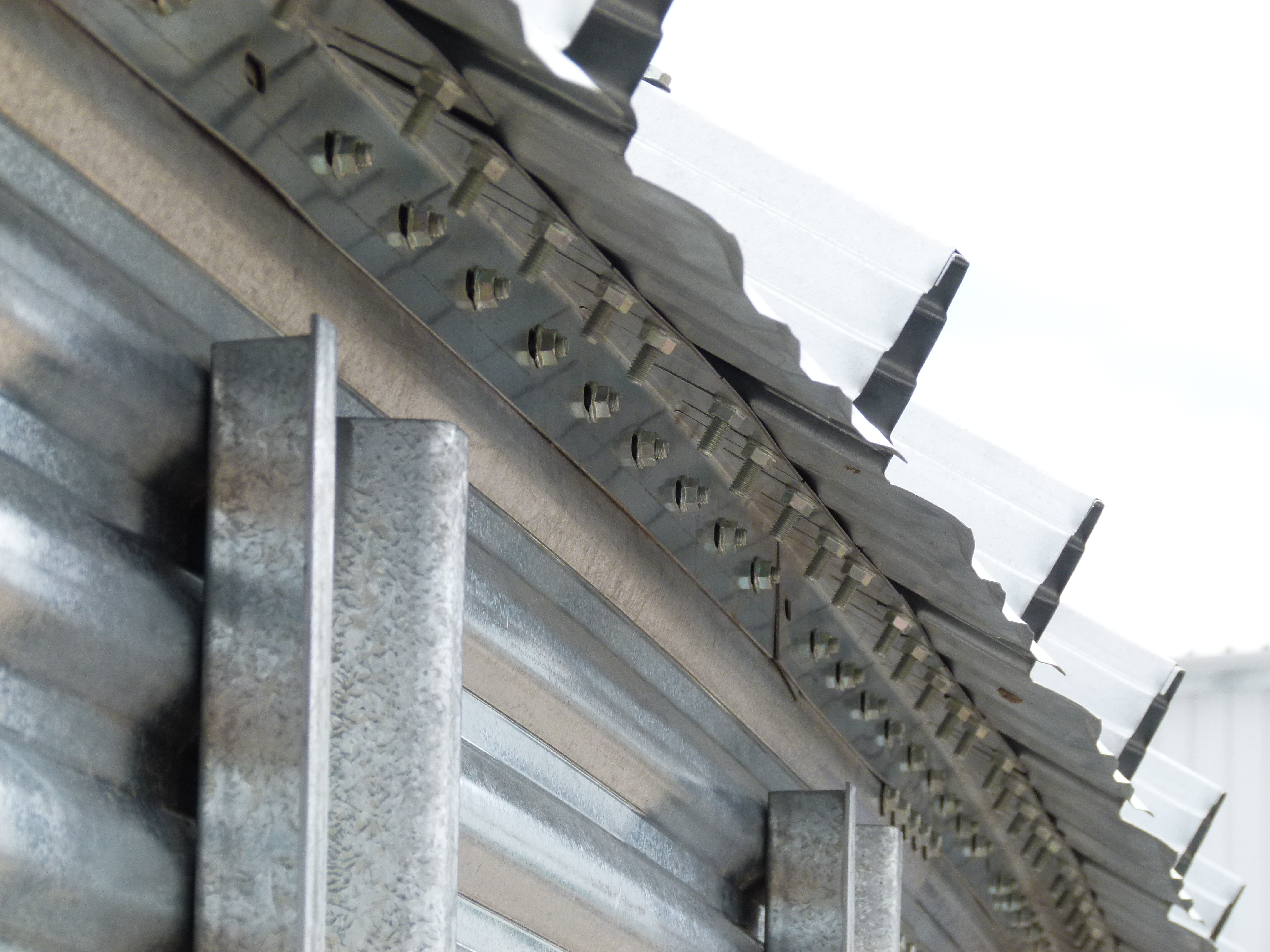

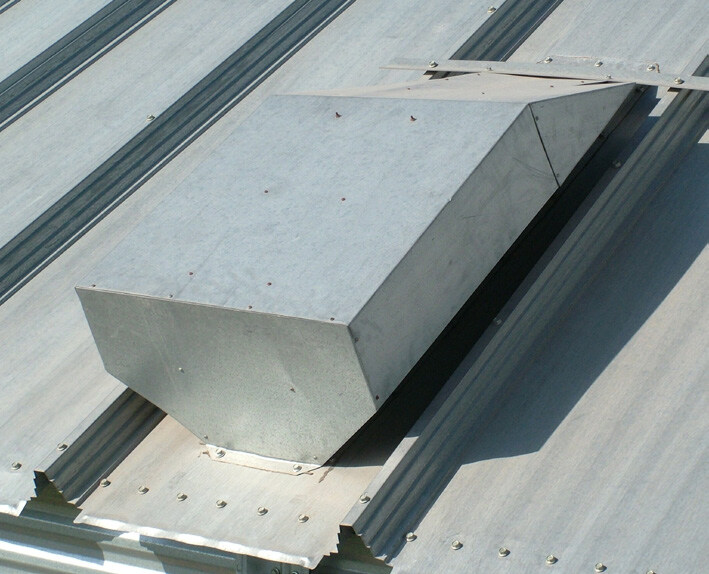

The roof panels are rigidized between the extra tall 3-1/2" high ribs and attached at the eave with a continuous angle iron and rib brackets giving added strength against wind.

Specifications

Model
(dia. x eave hi In meters)

Eave Height
(ft/in)

Overall Height
(ft/in)

Overall Height
(meters)

Bushels*
(maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

Cubic
Meters

STIFFENED BIN SERIES - Diameter 9 Meters (29' 6")

9x9

29' 8"

38' 2"

11.62

18,845

532

479

385

623

9x10

32' 11"

41' 5"

12.62

20,767

586

527

425

687

9x11

36' 3"

44' 9"

13.62

22,681

640

576

464

750

9x12

39' 6"

48' 0"

14.62

24,594

694

624

503

814

9x13

42' 10"

51' 4"

15.62

26,507

747

673

542

878

9x14

46' 1"

54' 7"

16.62

28,420

801

721

581

941

9x15

49' 4"

57' 10"

17.62

30,333

855

770

620

1,005

9x16

52' 8"

61' 2"

18.62

32,247

909

818

659

1,069

9x17

55' 11"

64' 5"

19.62

34,160

963

867

698

1,132

9x18

59' 3"

67' 9"

20.62

36,073

1,017

915

737

1,196

9x19

62' 6"

71' 0"

21.62

37,986

1,071

964

777

1,259

9x20

65' 9"

74' 3"

22.62

39,899

1,125

1,013

816

1,323

9x21

69' 0"

77' 6"

23.62

41,813

1,179

1,061

855

1,387

9x22

72' 4"

80' 9"

24.62

43,726

1,233

1,110

894

1,450

9x23

75' 8"

84' 1"

25.62

45,639

1,287

1,158

933

1,513

9x24

78' 11"

87' 3"

26.62

47,552

1,341

1,207

972

1,577

Model
(dia. x eave hi In meters)

Eave Height
(ft/in)

Overall Height
(ft/in)

Overall Height
(meters)

Bushels*
(maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

Cubic
Meters

STIFFENED BIN SERIES - Diameter 10 Meters (32' 10")

10x9

29' 8"

38' 8"

11.78

23,486

662

596

480

776

10x10

32' 11"

41' 11"

12.78

25,848

729

656

528

855

10x11

36' 3"

45' 2"

13.78

28,210

795

716

577

933

10x12

39' 6"

48' 6"

14.78

30,572

862

776

625

1,012

10x13

42' 10"

51' 9"

15.78

32,934

929

836

673

1,090

10x14

46' 1"

55' 0"

16.78

35,296

995

896

722

1,169

10x15

49' 4"

58' 4"

17.78

37,658

1,062

956

770

1,247

10x16

52' 8"

61' 7 "

18.78

40,020

1,129

1,016

818

1,326

10x17

55' 11"

64' 11"

19.78

42,382

1,195

1,076

866

1,404

10x18

59' 3"

68' 9"

20.78

44,744

1,262

1,136

915

1,483

10x19

62' 6"

71' 6"

21.78

47,106

1,328

1,196

963

1,562

10x20

65' 9"

74' 9"

22.78

49,468

1,395

1,255

1,011

1,640

10x21

69' 0"

78' 0"

23.78

51,830

1,461

1,315

1,060

1,719

10x22

72' 4"

81' 4"

24.78

54,192

1,528

1,375

1,108

1,797

10x23

75' 8"

84' 7"

25.78

56,554

1,595

1,435

1,156

1,876

10x24

78' 11"

87' 11"

26.78

58,916

1,661

1,495

1,204

1,954

Model
(dia. x eave hi In meters)

Eave Height
(ft/in)

Overall Height
(ft/in)

Overall Height
(meters)

Bushels*
(maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

Cubic
Meters

STIFFENED BIN SERIES - Diameter 11 Meters (36' 1")

11x9

29' 8"

39' 7"

12.07

28,671

809

728

586

948

11x10

32' 11"

42' 10"

13.07

31,529

889

800

645

1,043

11x11

36' 3"

46' 1"

14.07

34,387

970

873

703

1,138

11x12

39' 6"

49' 5"

15.07

37,245

1,050

945

761

1,233

11x13

42' 10"

52' 8"

16.07

40,103

1,131

1,018

820

1,328

11x14

46' 1"

55' 11"

17.07

42,961

1,211

1,090

878

1,423

11x15

49' 4"

59' 3"

18.07

45,819

1,292

1,163

937

1,518

11x16

52' 8"

62' 6"

19.07

48,677

1,373

1,235

995

1,613

11x17

55' 11"

65' 10"

20.07

51,535

1,453

1,308

1,054

1,708

11x18

59' 3"

69' 1"

21.07

54,393

1,534

1,380

1,120

1,803

11x19

62' 6"

72' 4"

22.07

57,251

1,614

1,453

1,170

1,898

11x20

65' 9"

75' 8"

23.07

60,109

1,695

1,525

1,229

1,993

11x21

69' 0"

78' 11"

24.07

62,967

1,776

1,598

1,287

2,088

11x22

72' 4"

82' 2"

25.07

65,825

1,856

1,671

1,346

2,183

11x23

75' 8"

85' 5"

26.07

68,683

1,937

1,743

1,404

2,278

11x24

78' 11"

88' 10"

27.07

71,541

2,017

1,816

1,463

2,373

Model
(dia. x eave hi In meters)

Eave Height
(ft/in)

Overall Height
(ft/in)

Overall Height
(meters)

Bushels*
(maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

Cubic
Meters

STIFFENED BIN SERIES - Diameter 13 Meters (42' 8")

13x9

29' 8"

41' 6"

12.65

40,752

1,149

1,034

833

1,347

13x10

32' 11"

44' 10"

13.65

44,744

1,262

1,136

915

1,480

13x11

36' 3"

48' 1"

14.65

48,736

1,374

1,237

996

1,613

13x12

39' 6"

51' 5"

15.65

52,727

1,487

1,338

1,078

1,746

13x13

42' 10"

54' 7"

16.65

56,719

1,599

1,439

1,160

1,878

13x14

46' 1"

57' 11"

17.65

60,711

1,712

1,541

1,241

2,011

13x15

49' 4"

61' 3"

18.65

64,703

1,825

1,642

1,323

2,144

13x16

52' 8"

64' 6"

19.65

68,694

1,937

1,743

1,404

2,276

13x17

55' 11"

67' 10"

20.65

72,686

2,050

1,845

1,486

2,409

13x18

59' 3"

71' 1"

21.65

76,678

2,162

1,946

1,568

2,542

13x19

62' 6"

74' 4"

22.65

80,670

2,275

2,047

1,649

2,675

13x20

65' 9"

77' 8"

23.65

84,662

2,387

2,149

1,731

2,807

13x21

69' 0"

80' 11"

24.65

88,653

2,500

2,250

1,812

2,940

13x22

72' 4"

84' 2"

25.65

92,645

2,612

2,351

1,894

3,073

13x23

75' 8"

87' 5"

26.65

96,637

2,725

2,452

1,976

3,205

13x24

78' 11"

90' 8"

27.65

100,629

2,837

2,554

2,057

3,338

Model
(dia. x eave hi In meters)

Eave Height
(ft/in)

Overall Height
(ft/in)

Overall Height
(meters)

Bushels*
(maximum)

Metric Tons* (maximum)
Wheat	Corn	Rice

Cubic
Meters

STIFFENED BIN SERIES - Diameter 15 Meters (49' 3")

15x9

29' 8"

42' 6"

12.96

55,190

1,556

1,401

1,128

1,825

15x10

32' 11"

45' 10"

13.96

60,505

1,706

1,535

1,237

2,002

15x11

36' 3"

49' 1"

14.96

65,819

1,856

1,670

1,346

2,179

15x12

39' 6"

52' 4"

15.96

71,134

2,006

1,805

1,454

2,355

15x13

42' 10"

55' 8"

16.96

76,448

2,156

1,940

1,563

2,542

15x14

46' 1"

58' 11"

17.96

81,763

2,305

2,075

1,671

2,718

15x15

49' 4"

62' 2"

18.96

87,077

2,455

2,210

1,780

2,895

15x16

52' 8"

65' 6"

19.96

92,392

2,605

2,345

1,889

3,072

15x17

55' 11"

68' 9"

20.96

97,706

2,755

2,480

1,997

3,248

15x18

59' 3"

72' 0"

21.96

103,021

2,905

2,614

2,106

3,425

15x19

62' 6"

75' 4"

22.96

108,335

3,055

2,749

2,215

3,602

15x20

65' 9"

78' 7"

23.96

113,650

3,205

2,884

2,323

3,779

15x21

69' 0"

81' 11"

24.96

118,964

3,354

3,019

2,432

3,955

15x22

72' 4"

85' 2 "

25.96

124,279

3,504

3,154

2,541

4,132

15x23

75' 8"

88' 5 "

26.96

129,593

3,654

3,289

2,649

4,309

15x24

78' 11"

91' 9 "

27.96

134,908

3,804

3,424

2,758

4,485

TYPICAL GRAIN DENSITIES:

Wheat approximately 800 kg/m3 (50 lb/ft3)
Corn approximately 720 kg/m3 (45 lb/ft3)
Rice approximately 580 kg/m3 (36 lb/ft3)

* Capacities based on bin filled to eave with grain peaked in roof area at 28 degree slope. Bushels based on 1.25 cubic ft./bu. Metric ton calculations assume wheat at 800 kb/cubic meter; corn at 720 kg/cubic meter and rice at 580 kg/cubic meters. All maximum capacities include a 6% compaction allowances as determined by the American Society of Agricultural Engineers (ASAE) standard S413.
