Capacities from 75,000 to nearly 1 million bushels
Variety of peak load ratings
Large roof decks
UNMATCHED ROOF SYSTEM
CLEAR SPAN ROOF SYSTEM

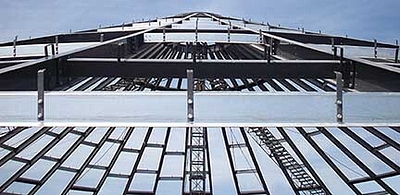

The Big Bin® Series offers an enormous, clear span roof system designed for strong winds, snow loads, temperature cables and high volume filling equipment. The 30° roof allows for optimum filling, and the huge deck at the peak easily accepts today’s ever larger catwalks and higher capacity filling equipment.

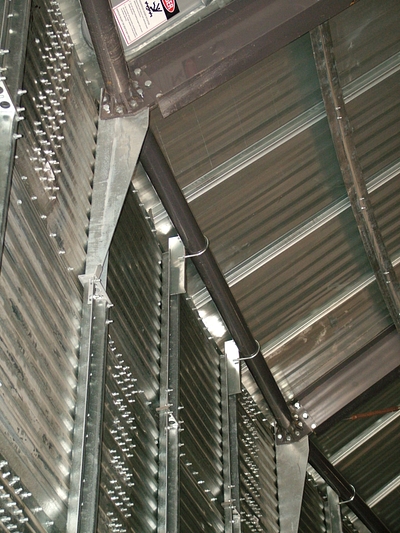

The 11” or 15” deep continuous I-beam rafters from eave to peak provide a strong framework for roof loads. This roof system is capable of supporting uniform loads of 50,000-70,000 lbs. (depending on model) at the peak and 40 lbs. per sq. ft. ground snow load.
INNOVATIVE ROOF SYSTEM
STRONG STANDING SEAM PANEL
System uses a “Standing Seam” panel to elevate the roof fasteners above the roof valley. The roof panels are attached to the roof skelton with standing seam roof straps.
RIGIDIZED ROOF PANELS

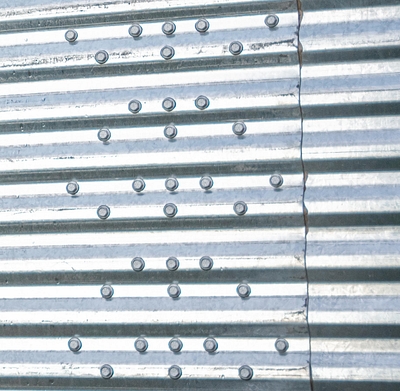

Roof panels are rigidized for longer life and attach with numerous bolts to the wall system through a continuous angle at the eave. This prevents panels from tearing loose in high wind conditions.
Specifications
| Model (dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
| COMMERCIAL BIN SERIES - Diameter 15 Meters (49' 3") | ||||||||||||||
| 15x13 | 42' 10" | 55' 7" | 16.92 | 76,464 | 2,156 | 1,940 | 1,563 | 2,542 | ||||||
| 15x14 | 46' 1 | 58' 10" | 17.92 | 81,780 | 2,305 | 2,075 | 1,671 | 2,718 | ||||||
| 15x15 | 49' 4" | 62' 1" | 18.92 | 87,096 | 2,455 | 2,210 | 1,780 | 2,895 | ||||||
| 15x16 | 52' 8" | 65' 5" | 19.92 | 92,411 | 2,605 | 2,345 | 1,889 | 3,072 | ||||||
| 15x17 | 55' 11" | 68' 8" | 20.92 | 97,727 | 2,755 | 2,480 | 1,997 | 3,248 | ||||||
| 15x18 | 59' 3" | 72' 0" | 21.92 | 103,042 | 2,905 | 2,614 | 2,106 | 3,425 | ||||||
| 15x19 | 62' 6" | 75' 3" | 22.92 | 108,358 | 3,055 | 2,749 | 2,215 | 3,602 | ||||||
| 15x20 | 65' 9" | 78' 6" | 23.92 | 113,674 | 3,205 | 2,884 | 2,323 | 3,779 | ||||||
| 15x21 | 69' 0" | 81' 10" | 24.92 | 118,989 | 3,354 | 3,019 | 2,432 | 3,955 | ||||||
| 15x22 | 72' 4" | 85' 1" | 25.92 | 124,305 | 3,504 | 3,154 | 2,541 | 4,132 | ||||||
| 15x23 | 75' 8" | 88' 4" | 26.92 | 129,621 | 3,654 | 3,289 | 2,649 | 4,309 | ||||||
| 15x24 | 78' 11" | 91' 8" | 27.92 | 134,936 | 3,804 | 3,424 | 2,758 | 4,485 | ||||||
| 15x25 | 82' 2" | 94' 11" | 28.92 | 140,252 | 3,954 | 3,558 | 2,867 | 4,662 | ||||||
| 15x26 | 85' 6" | 98' 3" | 29.92 | 145,567 | 4,104 | 3,693 | 2,975 | 4,839 | ||||||
| 15x27 | 88' 9" | 101' 6" | 30.92 | 150,883 | 4,253 | 3,828 | 3,084 | 5,016 | ||||||
| 15x28 | 92' 0" | 104' 9" | 31.92 | 156,199 | 4,403 | 3,963 | 3,192 | 5,192 | ||||||
| 15x29 | 95' 3" | 108' 1" | 32.92 | 161,514 | 4,553 | 4,098 | 3,301 | 5,369 | ||||||
| 15x30 | 98' 7" | 111' 4" | 33.92 | 166,830 | 4,703 | 4,233 | 3,410 | 5,546 | ||||||
| 15x31 | 101' 10" | 114' 7" | 34.92 | 172,145 | 4,853 | 4,367 | 3,518 | 5,723 | ||||||
| 15x32 | 105' 2" | 117' 11" | 35.92 | 177,461 | 5,003 | 4,502 | 3,627 | 5,899 | ||||||
| 15x33 | 108' 5" | 121' 2" | 36.92 | 182,777 | 5,152 | 4,637 | 3,735 | 6,076 | ||||||
| 15x34 | 111' 8" | 124' 6" | 37.92 | 188,092 | 5,302 | 4,772 | 3,844 | 6,253 | ||||||
| Model (dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL BIN SERIES - Diameter 17 Meters (55' 9") | ||||||||||||||
| 17x13 | 42' 10" | 57' 5" | 17.50 | 99,424 | 2,803 | 2,522 | 2,032 | 3,305 | ||||||
| 17x14 | 46' 1" | 60' 9" | 18.50 | 106,252 | 2,995 | 2,695 | 2,171 | 3,532 | ||||||
| 17x15 | 49' 4" | 64' 0" | 19.50 | 113,080 | 3,188 | 2,869 | 2,311 | 3,759 | ||||||
| 17x16 | 52' 8" | 67' 4" | 20.50 | 119,907 | 3,380 | 3,042 | 2,450 | 3,986 | ||||||
| 17x17 | 55' 11" | 70' 7" | 21.50 | 126,735 | 3,572 | 3,215 | 2,590 | 4,213 | ||||||
| 17x18 | 59' 2" | 73' 10" | 22.50 | 133,562 | 3,765 | 3,388 | 2,730 | 4,440 | ||||||
| 17x19 | 62' 6" | 77' 2" | 23.50 | 140,390 | 3,957 | 3,562 | 2,869 | 4,667 | ||||||
| 17x20 | 65' 9" | 80' 5" | 24.50 | 147,218 | 4,150 | 3,735 | 3,009 | 4,894 | ||||||
| 17x21 | 69' 1" | 83' 8" | 25.50 | 154,045 | 4,342 | 3,908 | 3,148 | 5,121 | ||||||
| 17x22 | 72' 4" | 87' 0" | 26.50 | 160,873 | 4,535 | 4,081 | 3,288 | 5,348 | ||||||
| 17x23 | 75' 7" | 90' 3" | 27.50 | 167,700 | 4,727 | 4,254 | 3,427 | 5,575 | ||||||
| 17x24 | 78' 11" | 93' 7" | 28.50 | 174,528 | 4,920 | 4,428 | 3,567 | 5,802 | ||||||
| 17x25 | 82' 2" | 96' 10" | 29.50 | 181,356 | 5,112 | 4,601 | 3,706 | 6,029 | ||||||
| 17x26 | 85' 5" | 100' 1" | 30.50 | 188,183 | 5,305 | 4,774 | 3,846 | 6,256 | ||||||
| 17x27 | 88' 9" | 103' 5" | 31.50 | 195,011 | 5,497 | 4,947 | 3,985 | 6,493 | ||||||
| 17x28 | 92' 0" | 106' 8" | 32.50 | 201,839 | 5,690 | 5,121 | 4,125 | 6,710 | ||||||
| 17x29 | 95' 4" | 109' 11" | 33.50 | 208,666 | 5,883 | 5,294 | 4,265 | 6,937 | ||||||
| 17x30 | 98' 7" | 113' 3" | 34.50 | 215,494 | 6,075 | 5,468 | 4,404 | 7,164 | ||||||
| 17x31 | 101' 10" | 116' 6" | 35.50 | 222,321 | 6,268 | 5,641 | 4,544 | 7,391 | ||||||
| 17x32 | 105' 2" | 119' 10" | 36.50 | 229,149 | 6,460 | 5,814 | 4,684 | 7,618 | ||||||
| 17x33 | 108' 5" | 123' 1" | 37.50 | 235,977 | 6,653 | 5,987 | 4,823 | 7,845 | ||||||
| 17x34 | 111' 8" | 126' 4" | 38.50 | 242,804 | 6,845 | 6,161 | 4,963 | 8,072 | ||||||
| Model (dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL BIN SERIES - Diameter 18 Meters (59' 1") | ||||||||||||||
| 18x13 | 42' 10" | 58' 5" | 17.79 | 112,144 | 3,161 | 2,845 | 2,292 | 3,728 | ||||||
| 18x14 | 46' 1" | 61' 8" | 18.79 | 119,798 | 3,377 | 3,039 | 2,448 | 3,981 | ||||||
| 18x15 | 49' 4" | 64' 11" | 19.79 | 127,453 | 3,593 | 3,234 | 2,605 | 4,236 | ||||||
| 18x16 | 52' 8" | 68' 3" | 20.79 | 135,107 | 3,809 | 3,428 | 2,761 | 4,491 | ||||||
| 18x17 | 55' 11" | 71' 6" | 21.79 | 142,762 | 4,025 | 3,622 | 2,918 | 4,743 | ||||||
| 18x18 | 59' 2" | 74' 10" | 22.79 | 150,416 | 4,240 | 3,816 | 3,074 | 4,998 | ||||||
| 18x19 | 62' 6" | 78' 1" | 23.79 | 158,071 | 4,456 | 4,011 | 3,231 | 5,253 | ||||||
| 18x20 | 65' 9" | 81' 4" | 24.79 | 165,725 | 4,672 | 4,205 | 3,387 | 5,508 | ||||||
| 18x21 | 69' 1" | 84' 8" | 25.79 | 173,380 | 4,888 | 4,399 | 3,544 | 5,763 | ||||||
| 18x22 | 72' 4" | 87' 11" | 26.79 | 181,034 | 5,104 | 4,593 | 3,700 | 6,018 | ||||||
| 18x23 | 75' 7" | 91' 2" | 27.79 | 188,689 | 5,319 | 4,787 | 3,857 | 6,272 | ||||||
| 18x24 | 78' 11" | 94' 6" | 28.79 | 196,343 | 5,535 | 4,982 | 4,013 | 6,527 | ||||||
| 18x25 | 82' 2" | 97' 9" | 29.79 | 203,998 | 5,751 | 5,176 | 4,169 | 6,781 | ||||||
| 18x26 | 85' 5" | 101' 1" | 30.79 | 211,652 | 5,967 | 5,370 | 4,326 | 7,036 | ||||||
| 18x27 | 88' 9" | 104' 4" | 31.79 | 219,306 | 6,182 | 5,564 | 4,482 | 7,290 | ||||||
| 18x28 | 92' 0" | 107' 7" | 32.79 | 226,961 | 6,398 | 5,758 | 4,639 | 7,545 | ||||||
| 18x29 | 95' 4" | 110' 11" | 33.79 | 234,615 | 6,614 | 5,952 | 4,795 | 7,799 | ||||||
| 18x30 | 98' 7" | 114' 2" | 34.79 | 242,270 | 6,829 | 6,146 | 4,951 | 8,054 | ||||||
| 18x31 | 101' 10" | 117' 5" | 35.79 | 249,924 | 7,045 | 6,341 | 5,108 | 8,308 | ||||||
| 18x32 | 105' 2" | 120' 9" | 36.79 | 257,579 | 7,261 | 6,535 | 5,264 | 8,563 | ||||||
| 18x33 | 108' 5" | 124' 0" | 37.79 | 265,233 | 7,477 | 6,729 | 5,421 | 8,817 | ||||||
| 18x34 | 111' 8" | 127' 4" | 38.79 | 272,888 | 7,693 | 6,923 | 5,577 | 9,072 | ||||||
| Model (dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL BIN SERIES - Diameter 19 Meters (62' 4") | ||||||||||||||
| 19x13 | 42' 10" | 59' 4" | 18.07 | 125,706 | 3,538 | 3,186 | 2,568 | 4,174 | ||||||
| 19x14 | 46' 1" | 62' 7" | 19.07 | 134,235 | 3,778 | 3,402 | 2,743 | 4,458 | ||||||
| 19x15 | 49' 4" | 65' 11" | 20.07 | 142,763 | 4,018 | 3,618 | 2,918 | 4,741 | ||||||
| 19x16 | 52' 8" | 69' 2" | 21.07 | 151,292 | 4,258 | 3,835 | 3,093 | 5,025 | ||||||
| 19x17 | 55' 11" | 72' 6" | 22.07 | 159,820 | 4,498 | 4,050 | 3,268 | 5,308 | ||||||
| 19x18 | 59' 2" | 75' 9" | 23.07 | 168,349 | 4,738 | 4,268 | 3,443 | 5,592 | ||||||
| 19x19 | 62' 6" | 79' 0" | 24.07 | 176,878 | 4,978 | 4,484 | 3,618 | 5,875 | ||||||
| 19x20 | 65' 9" | 82' 4" | 25.07 | 185,406 | 5,218 | 4,700 | 3,793 | 6,160 | ||||||
| 19x21 | 69' 1" | 85' 7" | 26.07 | 193,935 | 5,458 | 4,917 | 3,968 | 6,442 | ||||||
| 19x22 | 72' 4" | 88' 10" | 27.07 | 202,463 | 5,698 | 5,133 | 4,143 | 6,726 | ||||||
| 19x23 | 75' 7" | 92' 2" | 28.07 | 210,992 | 5,938 | 5,350 | 4,318 | 7,000 | ||||||
| 19x24 | 78' 11" | 95' 5" | 29.07 | 219,521 | 6,178 | 5,560 | 4,493 | 7,293 | ||||||
| 19x25 | 82' 2" | 98' 9" | 30.07 | 228,049 | 6,424 | 5,782 | 4,658 | 7,576 | ||||||
| 19x26 | 85' 5" | 102' 0" | 31.07 | 236,578 | 6,665 | 5,999 | 4,832 | 7,860 | ||||||
| 19x27 | 88' 9" | 105' 3" | 32.07 | 245,107 | 6,906 | 6,216 | 5,007 | 8,144 | ||||||
| 19x28 | 92' 0" | 108' 7" | 33.07 | 253,635 | 7,146 | 6,431 | 5,181 | 8,427 | ||||||
| 19x29 | 95' 4" | 111' 10" | 34.07 | 262,164 | 7,378 | 6,648 | 5,356 | 8,711 | ||||||
| 19x30 | 98' 7" | 115' 1" | 35.07 | 270,692 | 7,627 | 6,865 | 5,530 | 8,995 | ||||||
| 19x31 | 101' 10" | 118' 5" | 36.07 | 279,221 | 7,868 | 7,081 | 5,704 | 9,278 | ||||||
| 19x32 | 105' 2" | 121' 8" | 37.07 | 287,750 | 8,108 | 7,297 | 5,878 | 9,562 | ||||||
| 19x33 | 108' 5" | 124' 11" | 38.07 | 296,278 | 8,349 | 7,514 | 6,053 | 9,845 | ||||||
| 19x34 | 111' 8" | 128' 3" | 39.07 | 304,807 | 8,589 | 7,730 | 6,227 | 10,129 | ||||||
| Model (dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL BIN SERIES - Diameter 22 Meters (72' 2") | ||||||||||||||
| 22x13 | 42' 10" | 62' 2" | 18.94 | 171,576 | 4,837 | 4,353 | 3,507 | 5,705 | ||||||
| 22x14 | 46' 1" | 65' 6" | 19.94 | 183,011 | 5,159 | 4,643 | 3,740 | 6,085 | ||||||
| 22x15 | 49' 4" | 68' 9" | 20.94 | 194,445 | 5,482 | 4,933 | 3,974 | 6,466 | ||||||
| 22x16 | 52' 8" | 72' 0" | 21.94 | 205,880 | 5,804 | 5,224 | 4,208 | 6,846 | ||||||
| 22x17 | 55' 11" | 75' 4" | 22.94 | 217,314 | 6,126 | 5,514 | 4,442 | 7,226 | ||||||
| 22x18 | 59' 2" | 78' 7" | 23.94 | 228,749 | 6,449 | 5,804 | 4,675 | 7,606 | ||||||
| 22x19 | 62' 6" | 81' 11" | 24.94 | 240,183 | 6,771 | 6,094 | 4,909 | 7,986 | ||||||
| 22x20 | 65' 9" | 85' 2" | 25.94 | 251,618 | 7,093 | 6,384 | 5,143 | 8,366 | ||||||
| 22x21 | 69' 1" | 88' 5" | 26.94 | 263,052 | 7,416 | 6,674 | 5,376 | 8,746 | ||||||
| 22x22 | 72' 4" | 91' 9" | 27.94 | 274,487 | 7,738 | 6,964 | 5,610 | 9,127 | ||||||
| 22x23 | 75' 7" | 95' 0" | 28.94 | 285,921 | 8,060 | 7,254 | 5,844 | 9,507 | ||||||
| 22x24 | 78' 11" | 98' 3" | 29.94 | 297,356 | 8,383 | 7,545 | 6,078 | 9,887 | ||||||
| 22x25 | 82' 2" | 101' 7" | 30.94 | 308,790 | 8,705 | 7,835 | 6,311 | 10,267 | ||||||
| 22x26 | 85' 5" | 104' 10" | 31.94 | 320,225 | 9,028 | 8,125 | 6,545 | 10,647 | ||||||
| 22x27 | 88' 9" | 108' 1" | 32.94 | 331,659 | 9,350 | 8,415 | 6,779 | 11,027 | ||||||
| 22x28 | 92' 0" | 111' 5" | 33.94 | 343,094 | 9,673 | 8,706 | 7,013 | 11,407 | ||||||
| 22x29 | 95' 4" | 114' 8" | 34.94 | 354,528 | 9,995 | 8,996 | 7,247 | 11,787 | ||||||
| 22x30 | 98' 7" | 118' 0" | 35.94 | 365,963 | 10,318 | 9,286 | 7,480 | 12,167 | ||||||
| 22x31 | 101' 10" | 121' 3" | 36.94 | 377,397 | 10,640 | 9,576 | 7,714 | 12,547 | ||||||
| 22x32 | 105' 2" | 124' 6" | 37.94 | 388,832 | 10,962 | 9,866 | 7,948 | 12,927 | ||||||
| 22x33 | 108' 5" | 127' 10" | 38.94 | 400,266 | 11,285 | 10,156 | 8,181 | 13,307 | ||||||
| 22x34 | 111' 8" | 131' 1" | 39.94 | 411,701 | 11,607 | 10,446 | 8,415 | 13,688 | ||||||
| Model (dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL BIN SERIES - Diameter 24 Meters (78' 9") | ||||||||||||||
| 24x13 | 42' 10" | 64' 1" | 19.52 | 206,602 | 5,824 | 5,242 | 4,223 | 6,843 | ||||||
| 24x14 | 46' 1" | 67' 4" | 20.52 | 220,210 | 6,208 | 5,587 | 4,501 | 7,295 | ||||||
| 24x15 | 49' 4" | 70' 9" | 21.52 | 233,818 | 6,592 | 5,932 | 4,779 | 7,748 | ||||||
| 24x16 | 52' 8" | 73' 11" | 22.52 | 247,426 | 6,975 | 6,278 | 5,057 | 8,223 | ||||||
| 24x17 | 55' 11" | 77' 2" | 23.52 | 261,034 | 7,359 | 6,623 | 5,335 | 8,675 | ||||||
| 24x18 | 59' 2" | 80' 6" | 24.52 | 274,642 | 7,743 | 6,968 | 5,613 | 9,127 | ||||||
| 24x19 | 62' 6" | 83' 9" | 25.52 | 288,250 | 8,126 | 7,314 | 5,891 | 9,580 | ||||||
| 24x20 | 65' 9" | 87' 1" | 26.52 | 301,858 | 8,510 | 7,659 | 6,170 | 10,032 | ||||||
| 24x21 | 69' 1" | 90' 4" | 27.52 | 315,466 | 8,893 | 8,004 | 6,448 | 10,484 | ||||||
| 24x22 | 72' 4" | 93' 7" | 28.52 | 329,074 | 9,277 | 8,349 | 6,726 | 10,937 | ||||||
| 24x23 | 75' 7" | 96' 11" | 29.52 | 342,682 | 9,661 | 8,695 | 7,004 | 11,389 | ||||||
| 24x24 | 78' 11" | 100' 2" | 30.52 | 356,290 | 10,044 | 9,040 | 7,282 | 11,841 | ||||||
| 24x25 | 82' 2" | 103' 5" | 31.52 | 369,898 | 10,428 | 9,385 | 7,560 | 12,294 | ||||||
| 24x26 | 85' 5" | 106' 9" | 32.52 | 383,506 | 10,812 | 9,730 | 7,838 | 12,746 | ||||||
| 24x27 | 88' 9" | 110' 0" | 33.52 | 397,114 | 11,195 | 10,076 | 8,116 | 13,199 | ||||||
| 24x28 | 92' 0" | 113' 4" | 34.52 | 410,722 | 11,579 | 10,421 | 8,395 | 13,651 | ||||||
| 24x29 | 95' 4" | 116' 7" | 35.52 | 424,330 | 11,959 | 10,763 | 8,671 | 14,103 | ||||||
| 24x30 | 98' 7" | 119' 10" | 36.52 | 437,938 | 12,343 | 11,109 | 8,949 | 14,556 | ||||||
| 24x31 | 101' 10" | 123' 2" | 37.52 | 451,546 | 12,727 | 11,454 | 9,227 | 15,008 | ||||||
| 24x32 | 105' 2" | 126' 5" | 38.52 | 465,154 | 13,111 | 11,800 | 9,505 | 15,461 | ||||||
| 24x33 | 108' 5" | 129' 8" | 39.52 | 478,762 | 13,494 | 12,145 | 9,783 | 15,913 | ||||||
| 24x34 | 111' 8" | 133' 0" | 40.52 | 492,370 | 13,878 | 12,490 | 10,062 | 16,366 | ||||||
| Model (dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL BIN SERIES - Diameter 27 Meters (88' 7") | ||||||||||||||
| 27x13 | 42' 10" | 66' 11" | 20.39 | 266,059 | 7,500 | 6,750 | 5,438 | 8,845 | ||||||
| 27x14 | 46' 1" | 70' 2" | 21.39 | 283,282 | 7.986 | 7,187 | 5,790 | 9,418 | ||||||
| 27x15 | 49' 4" | 73' 6" | 22.39 | 300,504 | 8,472 | 7,624 | 6,142 | 9,991 | ||||||
| 27x16 | 52' 8" | 76' 9" | 23.39 | 317,727 | 8,957 | 8,061 | 6,494 | 10,563 | ||||||
| 27x17 | 55' 11" | 80' 1" | 24.39 | 334,950 | 9,443 | 8,498 | 6,846 | 11,136 | ||||||
| 27x18 | 59' 2" | 83' 4" | 25.39 | 352,172 | 9,928 | 8,935 | 7,198 | 11,709 | ||||||
| 27x19 | 62' 6" | 86' 7" | 26.39 | 369,395 | 10,414 | 9,372 | 7,550 | 12,281 | ||||||
| 27x20 | 65' 9" | 89' 11" | 27.39 | 386,617 | 10,899 | 9,809 | 7,902 | 12,854 | ||||||
| 27x21 | 69' 1" | 93' 2" | 28.39 | 403,840 | 11,385 | 10,249 | 8,254 | 13,426 | ||||||
| 27x22 | 72' 4" | 96' 5" | 29.39 | 421,063 | 11,870 | 10,683 | 8,606 | 13,999 | ||||||
| 27x23 | 75' 7" | 99' 9" | 30.39 | 438,285 | 12,356 | 11,120 | 8,958 | 14,571 | ||||||
| 27x24 | 78' 11" | 103' 0" | 31.39 | 455,508 | 12,841 | 11,557 | 9,310 | 15,144 | ||||||
| 27x25 | 82' 2" | 106' 4" | 32.39 | 472,731 | 13,327 | 11,994 | 9,662 | 15,717 | ||||||
| 27x26 | 85' 6" | 109' 7" | 33.39 | 489,953 | 13,812 | 12,431 | 10,014 | 16,289 | ||||||
| 27x27 | 88' 9" | 112' 10" | 34.39 | 507,176 | 14,298 | 12,868 | 10,366 | 16,862 | ||||||
| 27x28 | 92' 0" | 116' 2" | 35.39 | 524,398 | 14,783 | 13,305 | 10,718 | 17,434 | ||||||
| 27x29 | 95' 4" | 119' 5" | 36.39 | 541,621 | 15,270 | 13,743 | 11,071 | 18,007 | ||||||
| 27x30 | 98' 7" | 122' 8" | 37.39 | 558,844 | 15,756 | 14,180 | 11,423 | 18,580 | ||||||
| 27x31 | 101' 10" | 126' 0" | 38.39 | 576,066 | 16,241 | 14,617 | 11,775 | 19,153 | ||||||
| 27x32 | 105' 2" | 129' 3" | 39.39 | 593,289 | 16,727 | 15,054 | 12,127 | 19,725 | ||||||
| 27x33 | 108' 5" | 132' 7" | 40.39 | 610,511 | 17,213 | 15,491 | 12,479 | 20,298 | ||||||
| 27x34 | 111' 8" | 135' 10" | 41.39 | 627,734 | 17,698 | 15,928 | 12,831 | 20,870 | ||||||
| Model (dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL BIN SERIES - Diameter 28 Meters (91' 10") | ||||||||||||||
| 28x13 | 42' 10" | 67' 10" | 20.67 | 287,774 | 8,113 | 7,301 | 5,882 | 9,562 | ||||||
| 28x14 | 46' 1" | 71' 2" | 21.67 | 306,296 | 8,635 | 7,771 | 6,260 | 10,178 | ||||||
| 28x15 | 49' 4" | 74' 5" | 22.67 | 324,818 | 9,157 | 8,241 | 6,639 | 10,794 | ||||||
| 28x16 | 52' 8" | 77' 9" | 23.67 | 343,340 | 9,679 | 8,711 | 7,017 | 11,419 | ||||||
| 28x17 | 55' 11" | 81' 1 " | 24.67 | 361,862 | 10,201 | 9,181 | 7,396 | 12,025 | ||||||
| 28x18 | 59' 2" | 84' 3" | 25.67 | 380,384 | 10,723 | 9,651 | 7,775 | 12,641 | ||||||
| 28x19 | 62' 6" | 87' 7" | 26.67 | 398,906 | 11,246 | 10,121 | 8,153 | 13,257 | ||||||
| 28x20 | 65' 9" | 90' 10" | 27.67 | 417,428 | 11,768 | 10,591 | 8,532 | 13,873 | ||||||
| 28x21 | 69' 1" | 94' 1" | 28.67 | 435,950 | 12,812 | 11,061 | 8,910 | 14,488 | ||||||
| 28x22 | 72' 4" | 97' 5" | 29.67 | 454,472 | 13,290 | 11,531 | 9,289 | 15,104 | ||||||
| 28x23 | 75' 7" | 100' 8" | 30.67 | 472,993 | 13,334 | 12,001 | 9,667 | 15,720 | ||||||
| 28x24 | 78' 11" | 103' 11" | 31.67 | 491,515 | 13,856 | 12,471 | 10,046 | 16,336 | ||||||
| 28x25 | 82' 2" | 107' 3" | 32.67 | 510,037 | 14,379 | 12,941 | 10,424 | 16,952 | ||||||
| 28x26 | 85' 5" | 110' 6" | 33.67 | 528,559 | 14,901 | 13,411 | 10,803 | 17,567 | ||||||
| 28x27 | 88' 9" | 113' 10" | 34.67 | 547,081 | 15,423 | 13,881 | 11,182 | 18,183 | ||||||
| 28x28 | 92' 0" | 117' 1" | 35.67 | 565,603 | 15,945 | 14,351 | 11,560 | 18,799 | ||||||
| 28x29 | 95' 4" | 120' 4" | 36.67 | 584,125 | 16,464 | 14,818 | 11,936 | 19,415 | ||||||
| 28x30 | 98' 7" | 123' 8" | 37.67 | 602,647 | 16,986 | 15,288 | 12,315 | 20,031 | ||||||
| 28x31 | 101' 10" | 126' 11" | 38.67 | 621,169 | 17,508 | 15,758 | 12,694 | 20,647 | ||||||
| 28x32 | 105' 2" | 130' 2" | 39.67 | 639,691 | 18,031 | 16,228 | 13,072 | 21,263 | ||||||
| 28x33 | 108' 5" | 133' 6" | 40.67 | 658,213 | 18,553 | 16,698 | 13,451 | 21,878 | ||||||
| 28x34 | 111' 8" | 136' 9" | 41.67 | 676,735 | 19,075 | 17,168 | 13,829 | 22,494 | ||||||
| Model (dia. x eave hi In meters) | Eave Height (ft/in) | Overall Height (ft/in) | Overall Height (meters) | Bushels* (maximum) |
| Cubic Meters | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| COMMERCIAL BIN SERIES - Diameter 32 Meters (105' 0") | ||||||||||||||
| 32x13 | 42' 10" | 71' 8" | 21.83 | 384,443 | 10,838 | 9,754 | 7,857 | 12,776 | ||||||
| 32x14 | 46' 1" | 74' 11" | 22.83 | 408,635 | 11,520 | 10,368 | 8,352 | 13,580 | ||||||
| 32x15 | 49' 4" | 78' 3" | 23.83 | 432,827 | 12,202 | 10,982 | 8,846 | 14,384 | ||||||
| 32x16 | 52' 8" | 81' 6" | 24.83 | 457,019 | 12,884 | 11,595 | 9,341 | 15,188 | ||||||
| 32x17 | 55' 11" | 84' 9" | 25.83 | 481,211 | 13,566 | 12,209 | 9,835 | 15,993 | ||||||
| 32x18 | 59' 2" | 88' 1" | 26.83 | 505,403 | 14,248 | 12,823 | 10,330 | 16,797 | ||||||
| 32x19 | 62' 6" | 91' 4" | 27.83 | 529,595 | 14,930 | 13,437 | 10,824 | 17,601 | ||||||
| 32x20 | 65' 9" | 94' 7" | 28.83 | 553,787 | 15,612 | 14,051 | 11,319 | 18,405 | ||||||
| 32x21 | 69' 1" | 97' 11" | 29.83 | 577,979 | 16,294 | 14,664 | 11,813 | 19,210 | ||||||
| 32x22 | 72' 4" | 101' 2" | 30.83 | 602,171 | 16,976 | 15,278 | 12,307 | 20,014 | ||||||
| 32x23 | 75' 7" | 104' 6" | 31.83 | 626,363 | 17,658 | 15,892 | 12,802 | 20,818 | ||||||
| 32x24 | 78' 11" | 107' 9" | 32.83 | 650,555 | 18,340 | 16,506 | 13,296 | 21,622 | ||||||
| 32x25 | 82' 2" | 111' 0" | 33.83 | 674,747 | 19,022 | 17,120 | 13,791 | 22,267 | ||||||
| 32x26 | 85' 5" | 114' 4" | 34.83 | 698,939 | 19,704 | 17,734 | 14,286 | 23,230 | ||||||
| 32x27 | 88' 9" | 117' 7" | 35.83 | 723,131 | 20,386 | 18,348 | 14,781 | 24,035 | ||||||
| 32x28 | 92' 0" | 120' 10" | 36.83 | 747,323 | 21,068 | 18,962 | 15,276 | 24,840 | ||||||
| 32x29 | 95' 4" | 124' 2" | 37.83 | 771,515 | 21,747 | 19,572 | 15,767 | 25,645 | ||||||
| 32x30 | 98' 7" | 127' 5" | 38.83 | 795,707 | 22,430 | 20,187 | 16,261 | 26,450 | ||||||
| 32x31 | 101' 10" | 130' 9" | 39.83 | 819,899 | 23,112 | 20,800 | 16,756 | 27,254 | ||||||
| 32x32 | 105' 2" | 134' 0" | 40.83 | 844,091 | 23,794 | 21,414 | 17,250 | 28,058 | ||||||
| 32x33 | 108' 5" | 137' 3" | 41.83 | 868,283 | 24,475 | 22,028 | 17,745 | 28,863 | ||||||
| 32x34 | 111' 8" | 140' 7" | 42.83 | 892,475 | 25,157 | 22,642 | 18,239 | 29,667 | ||||||
TYPICAL GRAIN DENSITIES:
- Wheat approximately 800 kg/m3 (50 lb/ft3)
- Corn approximately 720 kg/m3 (45 lb/ft3)
- Rice approximately 580 kg/m3 (36 lb/ft3)
* Capacities based on bin filled to eave with grain peaked in roof area at 28 degree slope. Bushels based on 1.25 cubic ft./bu. Metric ton calculations assume wheat at 800 kb/cubic meter; corn at 720 kg/cubic meter and rice at 580 kg/cubic meters. All maximum capacities include a 6% compaction allowances as determined by the American Society of Agricultural Engineers (ASAE) standard S413.

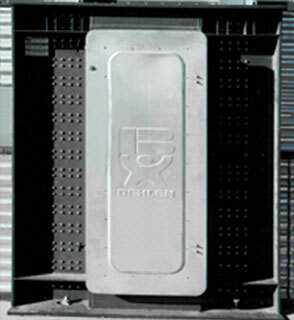

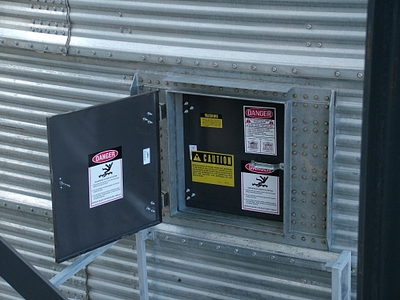

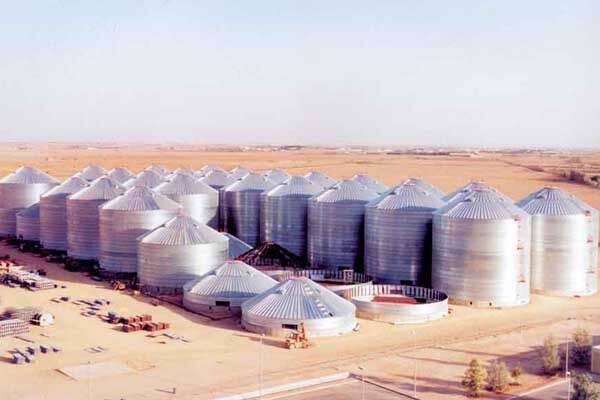

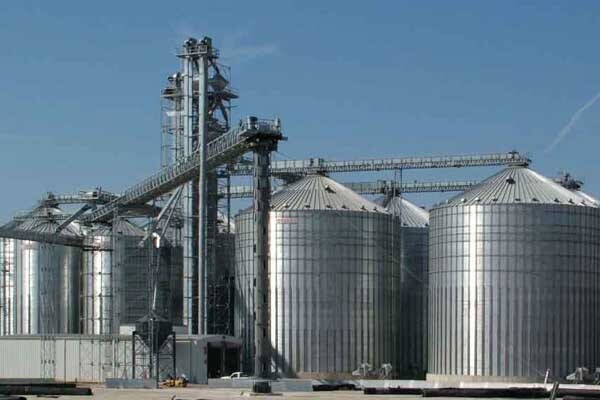

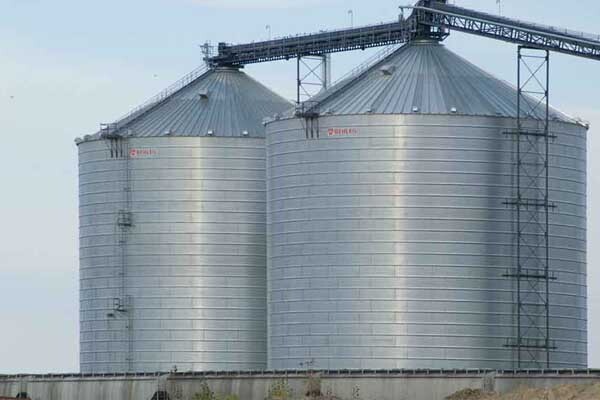

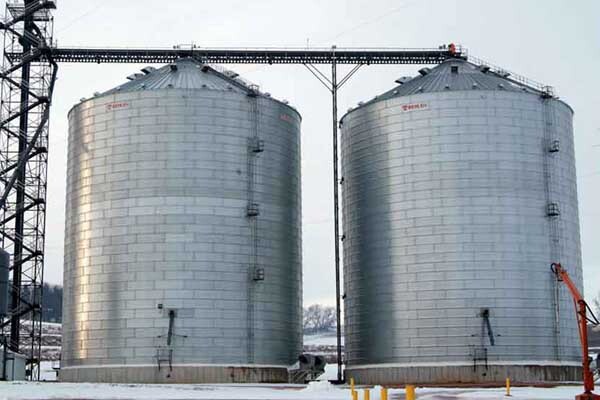

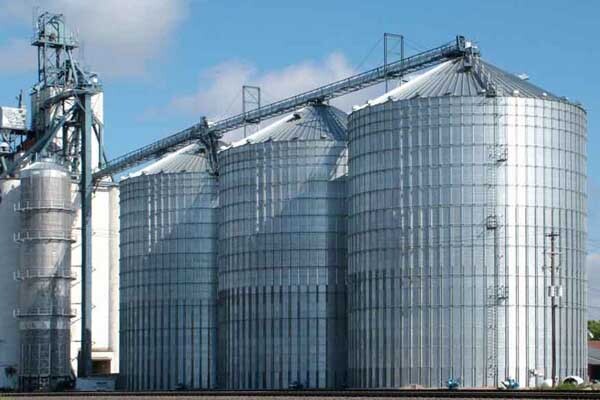

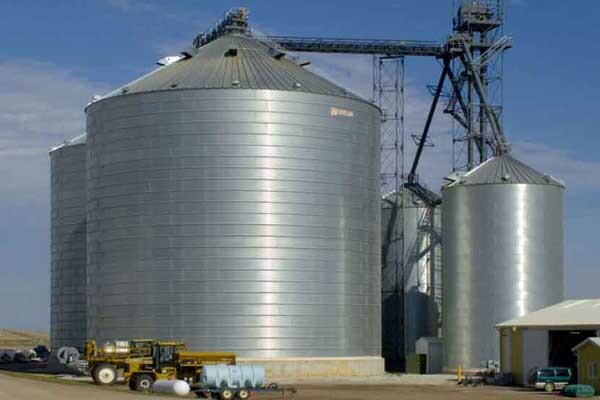

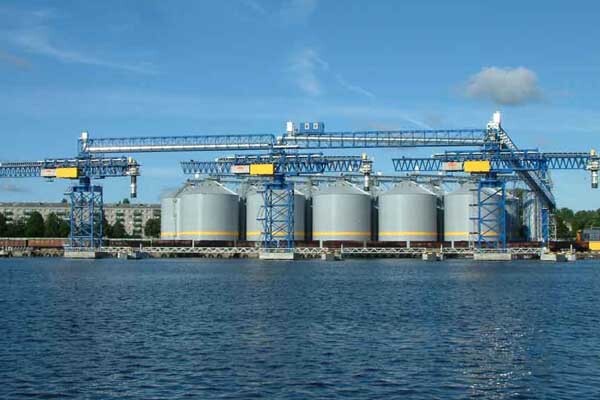

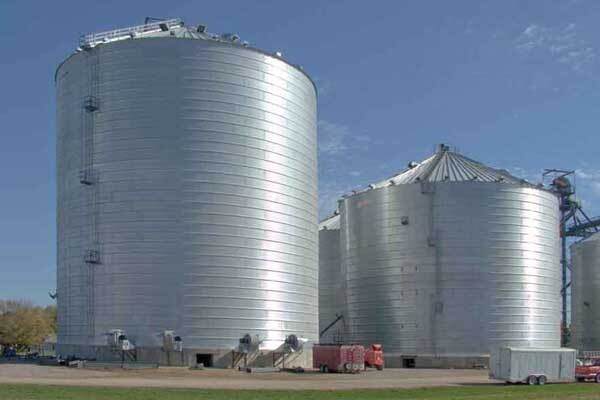

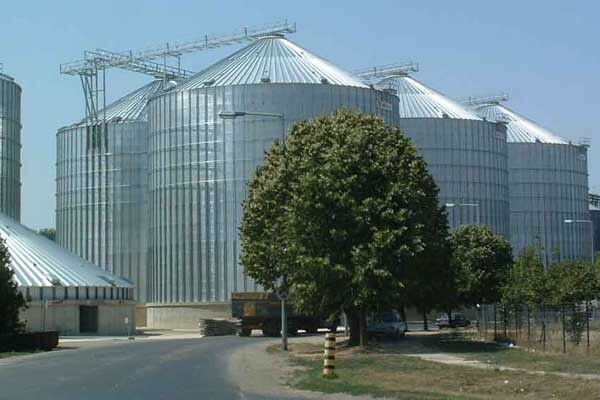

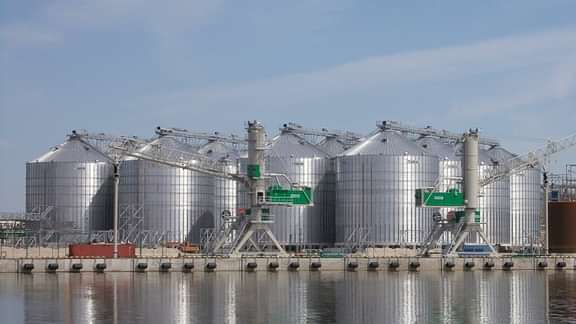

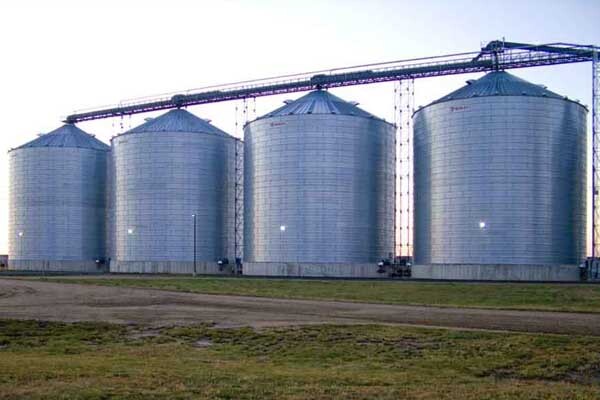

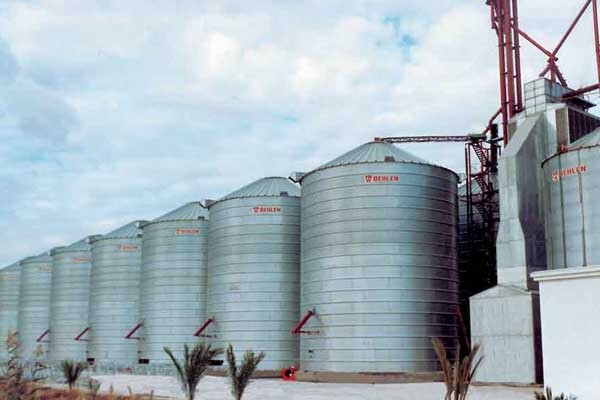

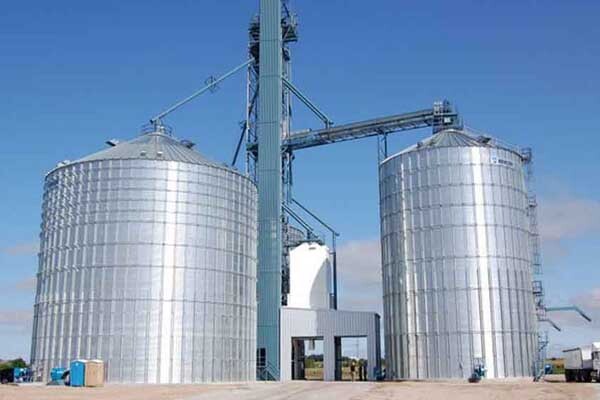

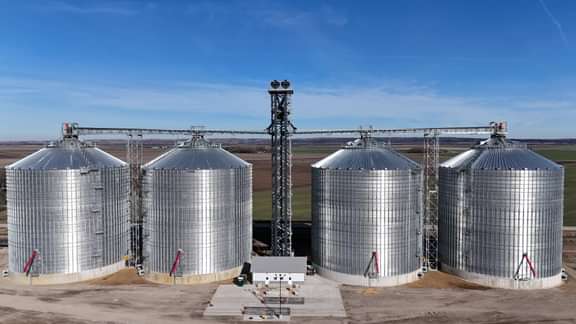

Commercial Series Photos
